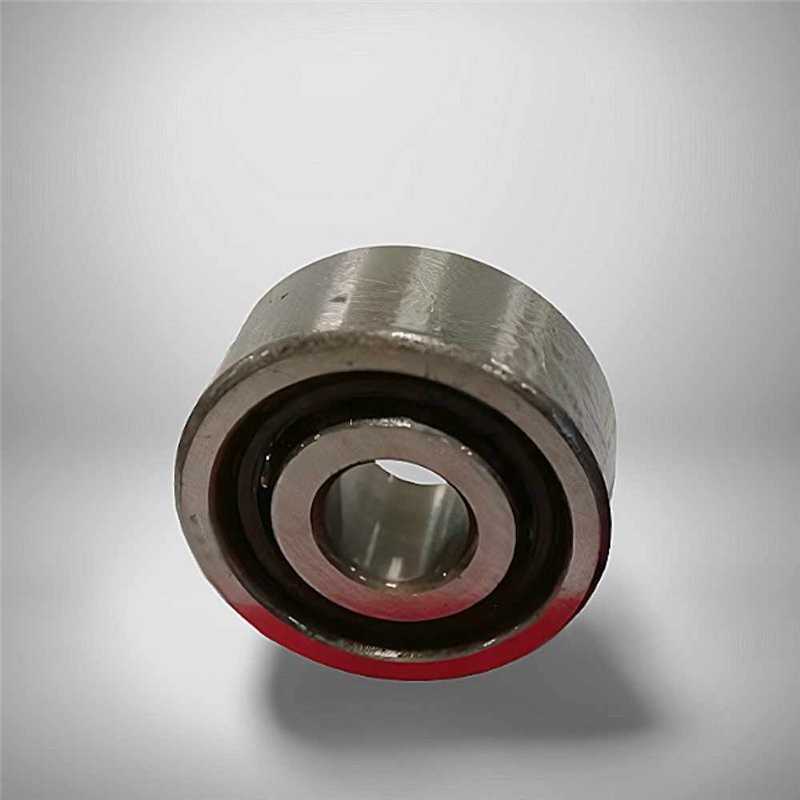

3210 TVC3 RICH Double Row Angular Contact Ball Bearing - 50 x 90 x 30.2 mm

Technical Specifications:

  • Catalog Code: 3210 TVC3 RICH
  • Brand: RICH
  • Type: Double row angular contact ball bearing
  • Bore Diameter (d): 50 mm
  • Outer Diameter (D): 90 mm
  • Width (B): 30.2 mm
  • Clearance: C3 (Greater than normal)
  • Cage: Polyamide
  • Sealing: None (Open)
  • Weight: 0.705 kg
  • Country of Origin: China

Product Overview:

The 3210 TVC3 RICH is a high-capacity double row angular contact ball bearing designed to sustain heavy combined radial and axial loads. Its double row configuration provides excellent axial rigidity and the ability to accommodate tilting moments, making it a critical component for industrial pumps, fans, and automotive transmissions. This model is equipped with a high-performance polyamide cage, which reduces friction and ensures quiet, vibration-free rotation. The C3 internal clearance is specifically included to allow for thermal expansion during high-speed operation, preventing internal stress and extending the operational lifespan of the unit in high-temperature environments.

Key Performance Advantages:

  • Enhanced Load Rigidity: Double row geometry offers superior support for dual-direction thrust and radial forces.
  • Polyamide Cage Technology: Minimizes noise and heat generation, optimizing efficiency at higher RPMs.
  • Thermal Management: C3 clearance provides the necessary safety margin for applications with significant heat buildup.
  • Open System Integration: Designed for use in oil-bath or grease-circulated environments for continuous lubrication.

Transparency Note: This bearing is manufactured under the RICH brand. The code 3210 TVC3 is used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
50
Outer Diameter
90
Width
30,2
Weight
0,705
Cage
Polyamide Cage
Clearance
C3 (Greater than Normal)
Category
Double Row Angular-Contact Ball Bearing
