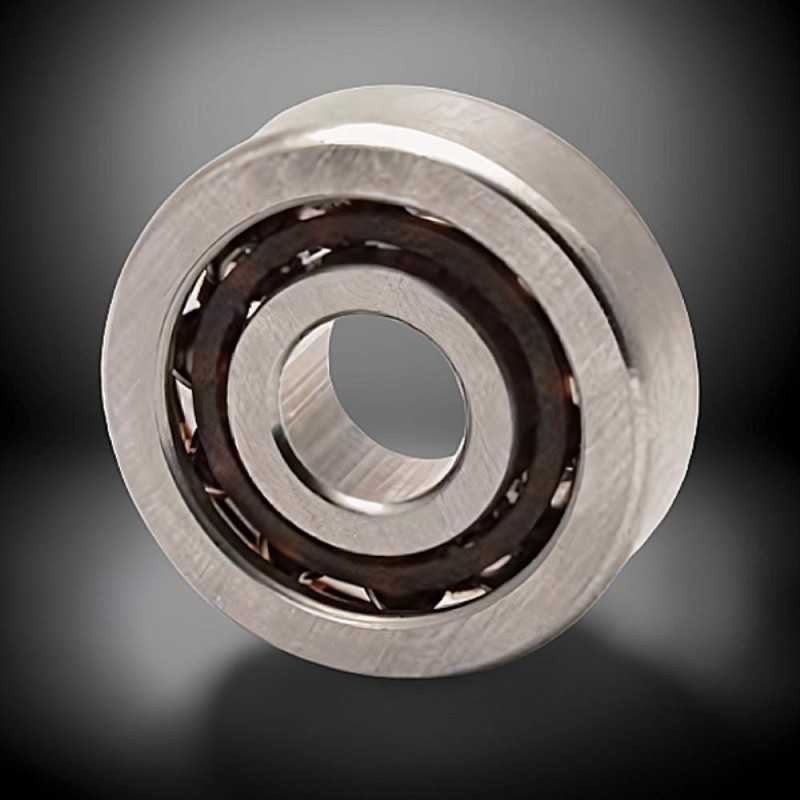

SS 7201 RICH Stainless Steel Single Row Angular-Contact Ball Bearing - 12 x 32 x 10 mm
The SS 7201 RICH is a high-quality single row angular-contact ball bearing, meticulously manufactured from stainless steel by RICH in China. This bearing is specifically designed to accommodate combined loads (both radial and axial) and is particularly well-suited for applications where high rigidity and precision are paramount. With dimensions of a 12 mm bore diameter, 32 mm outer diameter, and 10 mm width, it weighs 0.038 kg.
This bearing features a 40° contact angle, which enables it to handle significant axial loads in one direction, in addition to radial loads. It is equipped with a durable and lightweight polyamide cage, which contributes to smooth operation and is suitable for various operating conditions. This unsealed bearing is ideal for environments where stainless steel's corrosion resistance is crucial, such as in food processing, medical equipment, or marine applications, and where external lubrication or protection is provided.
Key Specifications:
- Type: Single Row Angular-Contact Ball Bearing
- Brand: RICH
- Dimensions: 12 mm bore diameter x 32 mm outer diameter x 10 mm width
- Weight: 0.038 kg
- Cage: Polyamide
- Contact Angle: 40°
- Sealing: None (Open)
- Product Feature: Stainless Steel
- Country of Origin: China
Key Advantages:
- Manufactured from stainless steel for excellent corrosion resistance.
- Designed to handle combined radial and axial loads efficiently.
- High 40° contact angle for increased axial load capacity.
- Lightweight and durable polyamide cage for smooth performance.
- Produced by RICH in China, ensuring reliable quality.
- Ideal for demanding environments requiring corrosion resistance and precision.
Data sheet
Inner Diameter
12
Outer Diameter
32
Width
10
Weight
0,038
Ball Rows
Single Row
