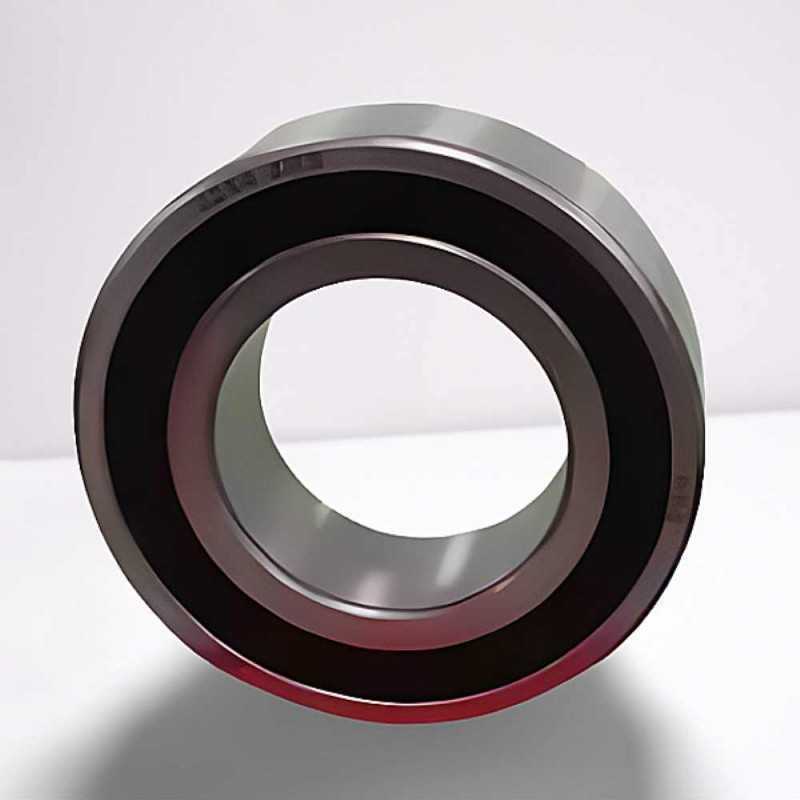

3816.2RS RICH | Double Row Angular Contact Ball Bearing 80 x 100 x 15 mm
Technical Specifications:
- Product Type: Double Row Angular Contact Ball Bearing
- Model Designation: 3816.2RS
- Brand: RICH
- Bore Diameter (d): 80 mm
- Outer Diameter (D): 100 mm
- Width (B): 15 mm
- Internal Clearance: CN (Normal Clearance)
- Sealing: 2RS (Double-sided rubber contact seals)
- Cage Material: Steel
- Weight: 0.251 kg
- Country of Origin: China
The 3816.2RS RICH is a specialized, thin-section double row angular contact ball bearing designed to provide high axial and radial load support within extremely narrow spatial constraints. With dimensions of 80 x 100 x 15 mm, this bearing features a very small cross-section relative to its large bore diameter, making it an ideal choice for compact mechanical assemblies requiring precise shaft guidance and rigidity.
The double row angular contact design allows the bearing to accommodate combined loads and axial forces in both directions. To ensure protection against environmental contaminants, it is equipped with double-sided rubber contact seals (2RS). These seals effectively retain the high-grade internal lubricant and prevent the ingress of dust and moisture, ensuring the bearing remains maintenance-free. The robust steel cage provides uniform ball spacing and stability during operation.
Precision-manufactured to meet rigorous industrial standards, the 3816.2RS RICH offers a low-vibration, high-stiffness solution for applications where weight and space savings are critical without compromising on mechanical performance.
Key Performance Advantages:
- Thin-Section Design: Optimized for applications with limited radial and axial space.
- Bidirectional Load Support: Engineered to manage axial thrust from both directions alongside radial loads.
- Integrated 2RS Sealing: High-quality contact seals ensure protection in moderately contaminated environments.
- High Operational Rigidity: The double row configuration provides excellent resistance to tilting moments.
- RICH Engineering Precision: Built to exacting tolerances to ensure smooth rotation and long service life.
Typical Applications:
- Precision robotics and automated handling systems.
- Thin-section industrial gearboxes and compact drives.
- Specialized automotive components and steering systems.
- Textile machinery and printing equipment with large-diameter hollow shafts.
Transparency Note: This product is manufactured under the RICH brand. All dimensions, model references, and technical data are provided strictly for identification and compatibility purposes and do not imply affiliation, authorization, or endorsement by the referenced manufacturers.
