5305-2RS RICH 25x62x25,4

Type: Double Row Angular Contact Ball Bearing
Model: 5305-2RS RICH
Dimensions: 25 x 62 x 25.4 mm
Features: Sealed (2RS), High Radial/Axial Capacity
Brand: RICH
Origin: China
RICH
53052RS
€5.72
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

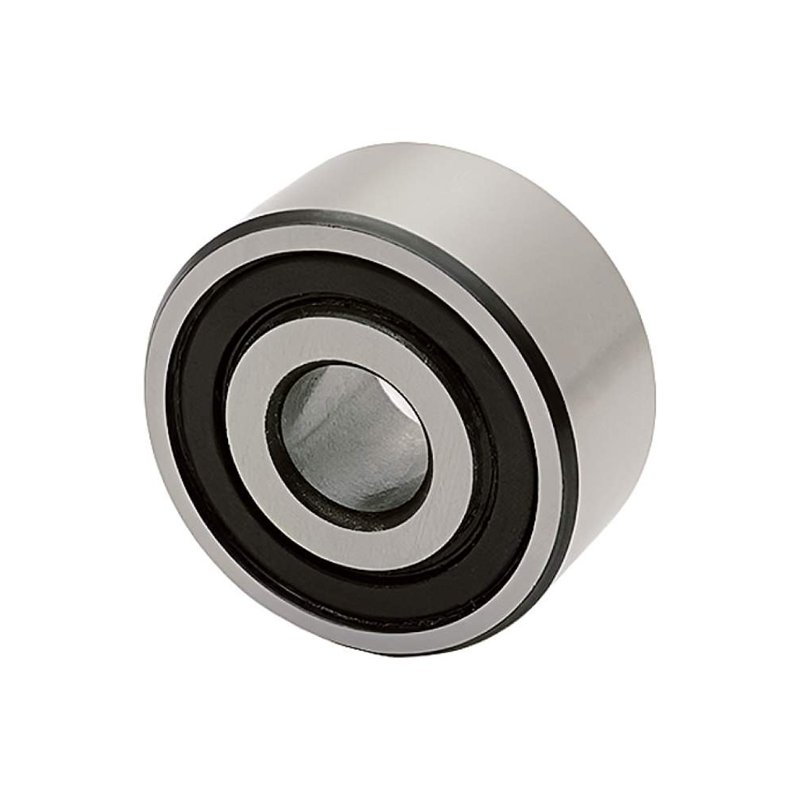

5305-2RS RICH Double Row Angular Contact Ball Bearing - 25 x 62 x 25.4 mm

Technical Specifications:

  • Catalog Code: 5305-2RS RICH
  • Brand: RICH
  • Type: Double row angular contact ball bearing
  • Bore Diameter (d): 25 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 25.4 mm
  • Sealing: Double-sided rubber contact seal (2RS)
  • Clearance: CN (Normal internal clearance)
  • Weight: 0.354 kg
  • Country of Origin: China

Key Performance Advantages:

  • Bi-Directional Axial Load Support: The dual-row configuration allows the 5305-2RS RICH to support axial loads in both directions in addition to radial loads, offering a compact alternative to using two single-row bearings.
  • High System Rigidity: The back-to-back contact angle arrangement provides a stiff bearing setup, which is excellent at resisting tilting moments and ensuring precise shaft guidance in pumps and gearboxes.
  • Superior Environmental Protection: The 2RS contact seals are engineered to keep high-quality grease inside the bearing while effectively blocking dust, moisture, and contaminants from entering the raceways.
  • Maintenance-Free Operation: Pre-lubricated with high-performance grease, this bearing is designed to operate efficiently throughout its service life without the need for relubrication.
  • Optimized 5300 Series Heavy Design: As part of the 5300 series, this model features a larger ball size and thicker rings compared to the 5200 series, providing significantly higher load ratings for demanding industrial tasks.

Transparency Note: This product is manufactured under the RICH brand. The code 5305-2RS is used for identification purposes.

Data sheet

Inner Diameter
25
Outer Diameter
62
Width
25,4
Weight
0,354
Ball Rows
Double Row
Sealing
Lip Seal On Both Sides
Clearance
CN (Normal)
Category
Double Row Angular-Contact Ball Bearing
