7007 B-2RS TV 35x62x14

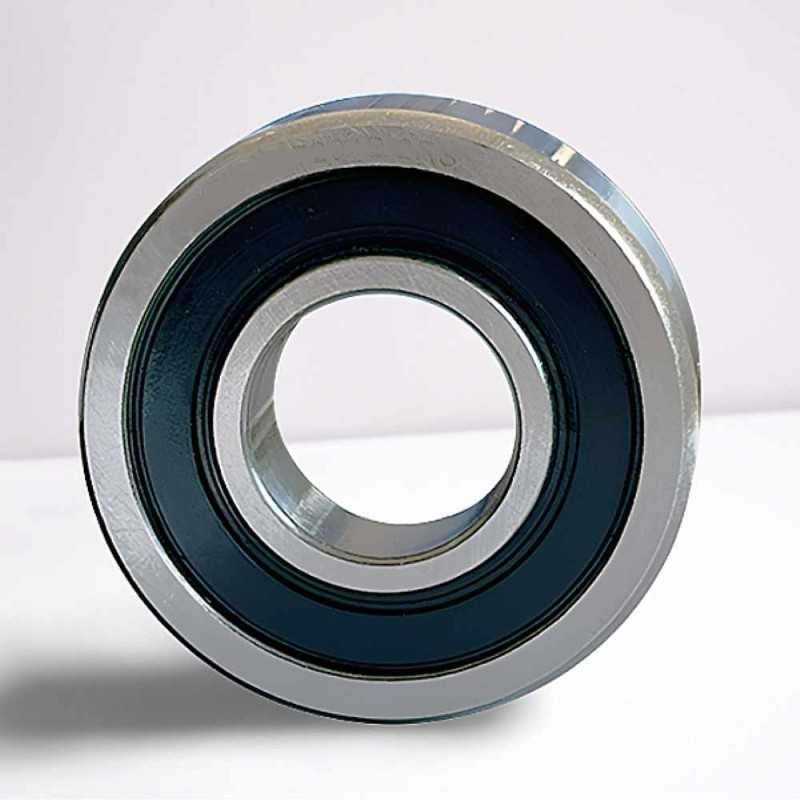

7007.B-2RSTV RICH Single Row Angular-Contact Ball Bearing - 35 x 62 x 14 mm

Technical Specifications:

• Product Type: Single Row Angular-Contact Ball Bearing
• Model Designation: 7007.B-2RSTV
• Brand: RICH
• Bore Diameter (d): 35 mm
• Outer Diameter (D): 62 mm
• Width (B): 14 mm
• Contact Angle: 40° (B)
• Sealing: Double-sided Rubber, Contact (2RS)
• Cage Material: Polyamide (TV)
• Lubrication: Pre-greased
• Weight: 0.152 kg
• Country of Origin: China

The 7007.B-2RSTV RICH is a high-precision single row angular-contact ball bearing engineered for applications that demand high speed and the ability to sustain significant combined radial and axial loads acting in one direction. The designation .B indicates a large 40° contact angle, which is optimized for managing particularly heavy axial loads. With dimensions of 35 mm bore, 62 mm outer diameter, and a 14 mm width, this bearing provides superior guidance for shafts and housings in machine tool spindles, pumps, and gearboxes. The 2RSTV suffix highlights the key features: a robust polyamide cage (TV) for high-speed operation, and double-sided rubber contact seals (2RS). These seals effectively retain the pre-filled grease, providing contamination protection for reliable, extended, and maintenance-free service life.

Key Performance Advantages:

• High Axial Load Capacity: The 40° contact angle (B) is specifically designed to handle substantial axial forces.
• High-Speed Capability: Features a lightweight and durable polyamide cage (TV) suitable for high rotational speeds.
• Sealed for Life: Double-sided contact rubber seals provide maximum protection and retain grease for extended operation.
• RICH Quality: A precision component guaranteeing high rigidity and reliable performance under combined loading.
