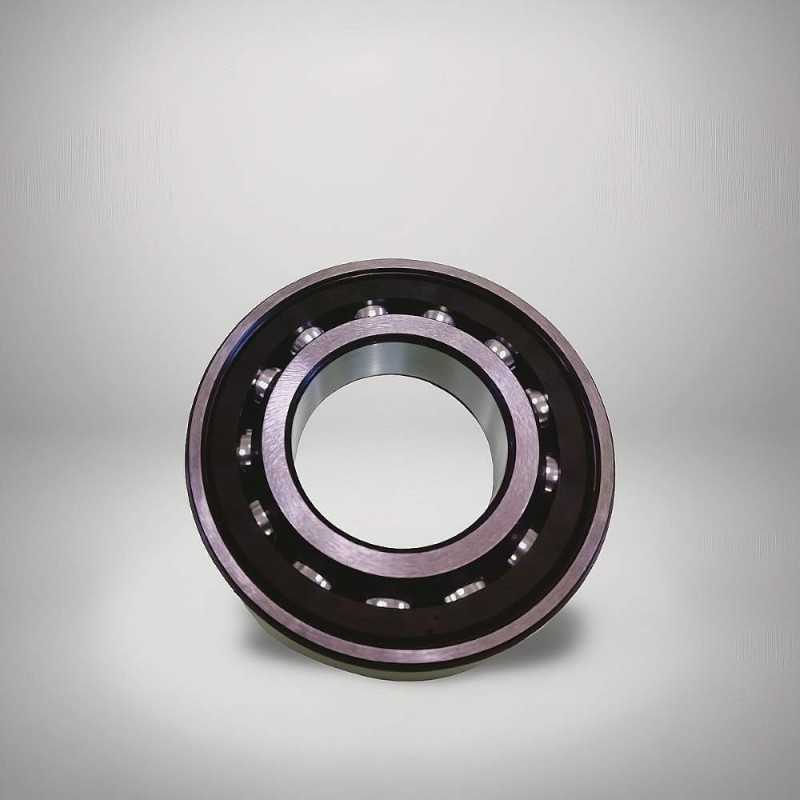

7204 B RICH 20x47x14 7204 RICH
zoom_out_map
7204 B RICH 20x47x14 7204 RICH

7204 B RICH 20x47x14

Type: Angular Contact Ball Bearing
Model: 7204.B RICH
Dimensions: 20 x 47 x 14 mm
Contact Angle: 40°
Brand: RICH
Origin: China
RICH
7204
€1.68
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

7204.B RICH | Single Row Angular Contact Ball Bearing – 20 x 47 x 14 mm

Technical Specifications:

  • Catalog Code: 7204.B RICH
  • Brand: RICH
  • Type: Single row angular contact ball bearing
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 47 mm
  • Width (B): 14 mm
  • Contact Angle: 40° (B suffix)
  • Cage: Steel, guided by rolling elements
  • Weight: 0.1 kg
  • Country of Origin: China

Key Performance Advantages:

  • High Axial Load Support: The 40° contact angle allows the RICH 7204.B to handle substantial axial forces, making it an excellent choice for applications requiring precise axial guidance.
  • Robust Steel Cage: Designed for durability, the steel cage ensures consistent ball spacing and smooth operation under varying speeds and load conditions.
  • Precision Engineering: Optimized raceway geometry reduces friction and heat generation, extending the service life of the bearing and the connected machinery.
  • Versatile Pairing: While designed for single-direction axial loads, these bearings are often used in pairs (back-to-back or face-to-face) to support axial loads in both directions.
  • Compact Industrial Design: With a 20 mm bore, this bearing offers a high power-to-weight ratio, fitting seamlessly into compact mechanical assemblies without sacrificing performance.

Transparency Note: This bearing is manufactured under the RICH brand. The code 7204.B is used for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
14
Weight
0,11
Ball Rows
Single Row
Cage
Polyamide Cage
Clearance
CN (Normal)
Category
Single Row Angular-Contact Ball Bearing
