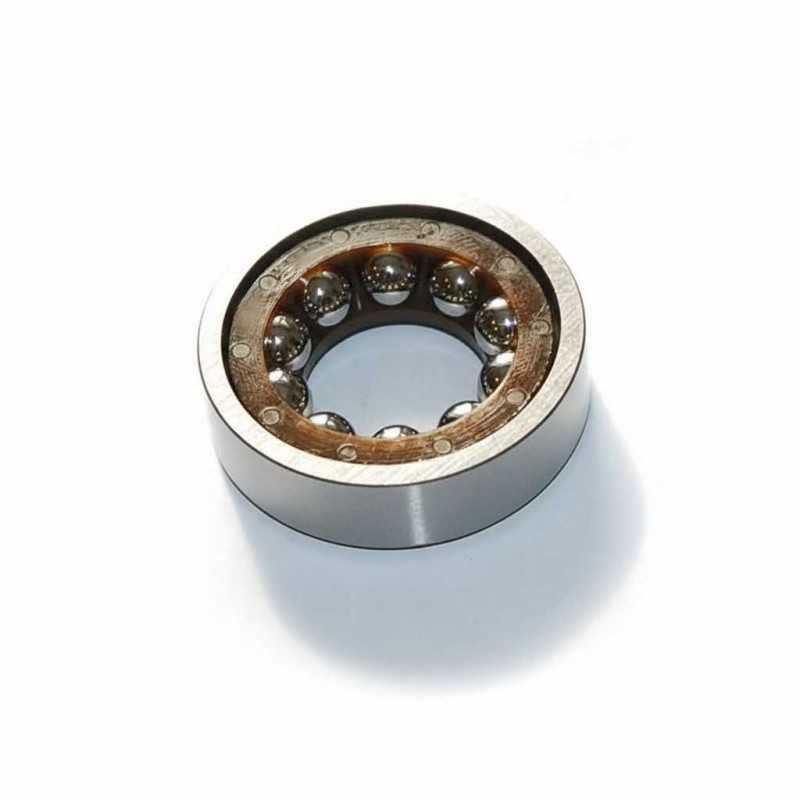

19BSW02 RICH Double Row Angular Contact Ball Bearing – 19.2 × 41 × 12 mm
OE Reference: 8943120480 (ISUZU)
OE Reference: MB379247 (MITSUBISHI)
OE Reference: MB379246 (MITSUBISHI)
OE Reference: 48025-G8300 (NISSAN)
The 19BSW02 RICH is a specialized double row angular contact ball bearing. Its dimensional and structural parameters correspond to the 19.2 × 41 × 12 mm format, specifically engineered to manage combined radial and axial loads within automotive steering and drivetrain interfaces.
Technical Specifications:
- Brand: RICH
- Type: Double row angular contact ball bearing
- Model: 19BSW02 RICH
- Inner Diameter (d): 19.2 mm
- Outer Diameter (D): 41 mm
- Width (B): 12 mm
- Sealing: Open (None)
- Weight: 0.088 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: High-capacity arrangement for simultaneous radial and axial loads
- Structural Layout: Double row configuration for increased rigidity and axial control
- Internal Geometry: Optimized contact angles for precise rotational stability
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Isuzu, Mitsubishi, and Nissan drivetrain and steering assembly interfaces
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
