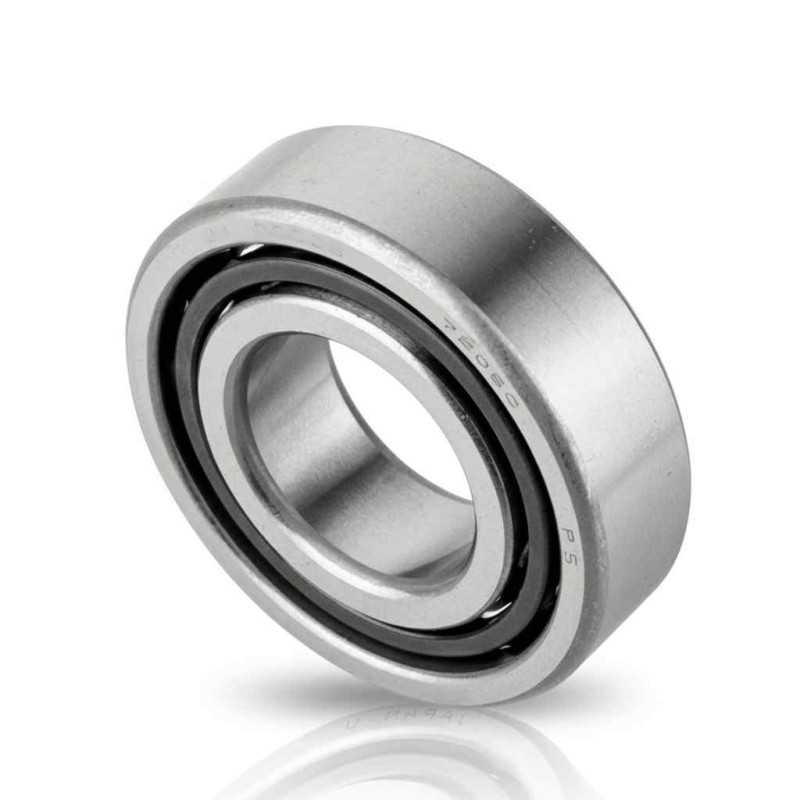

7205 CTRN P5 RICH 25x52x15 | Contact Angle: 15° 7205-CTRN-P5 RICH
zoom_out_map
7205 CTRN P5 RICH 25x52x15 | Contact Angle: 15° 7205-CTRN-P5 RICH

7205 CTRN P5 RICH 25x52x15 | Contact Angle: 15°

Type: High Precision Angular Contact Ball Bearing
Model: 7205 CTRN P5 RICH
Dimensions: 25 x 52 x 15 mm
Brand: RICH
Origin: China
RICH
7205-CTRN-P5
€18.42
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

7205 CTRN P5 RICH High Precision Angular Contact Ball Bearing – 25 × 52 × 15 mm

Technical Specifications:

  • Type: Single row angular-contact ball bearing
  • Brand: RICH
  • Model Designation: 7205 CTRN P5 RICH
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 52 mm
  • Width (B): 15 mm
  • Precision Class: P5 (High precision, superior to P6)
  • Contact Angle: 15°
  • Cage: Polyamide
  • Weight: 0.121 kg
  • Sealing: None (Open bearing)
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row high-precision radial-axial ball bearing.
  • Internal Geometry: 15° contact angle optimized for high-speed performance and combined load management.
  • Material Composition: High-carbon chromium steel rings and rolling elements with a high-performance polyamide cage.
  • Technical Accuracy: P5 tolerance class ensures enhanced rotational accuracy and smooth operation.
  • Dimensional Format: 25 × 52 × 15 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
52
Width
15
Weight
0,121
Ball Rows
Single Row
Cage
Polyamide Cage
Category
Single Row Angular-Contact Ball Bearing
