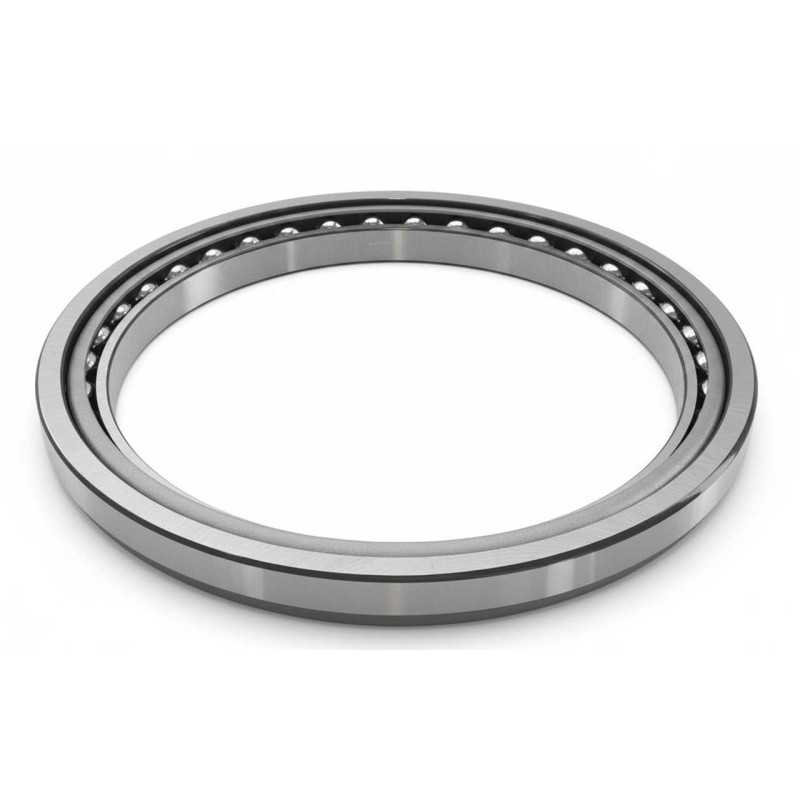

BA222-1WSA RICH 222x273x26 BA222-1WSA RICH
zoom_out_map
BA222-1WSA RICH 222x273x26 BA222-1WSA RICH

BA222-1WSA RICH 222x273x26

Type: Single Row Angular Contact Ball Bearing
Model: BA222-1WSA RICH
Dimensions: 222 x 273 x 26 mm
Brand: RICH
Origin: China
RICH
BA222-1WSA
€75.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

BA222-1WSA RICH – Single Row Angular Contact Ball Bearing – 222 x 273 x 26 mm

Technical Specifications:

  • Type: Single row angular contact ball bearing
  • Brand: RICH
  • Model Designation: BA222-1WSA
  • Inner Diameter (d): 222 mm
  • Outer Diameter (D): 273 mm
  • Total Width (B): 26 mm
  • Inner Ring Width: 18 mm
  • Outer Ring Width (C): 17 mm
  • Cage Material: Steel
  • Sealing: None (Open)
  • Weight: 2.556 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision-engineered single row angular contact bearing featuring raceways shifted relative to each other in the direction of the bearing axis to accommodate combined radial and axial loads.
  • Load Capability: Specifically designed to support high axial loads in one direction while maintaining rigorous rotational accuracy in large-diameter industrial assemblies.
  • Operational Efficiency: Equipped with a high-strength steel cage for optimized ball guidance, minimizing internal friction and ensuring uniform stress distribution during continuous operation.
  • Mechanical Interface: 222 x 273 x 26 mm large-format dimensions manufactured to strict industrial tolerances for stable fitment in heavy-duty machinery and precision equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
222
Outer Diameter
273
Width
26
Weight
2,5
Category
Single Row Angular-Contact Ball Bearing
