3202-2Z RICH 15x35x15,9

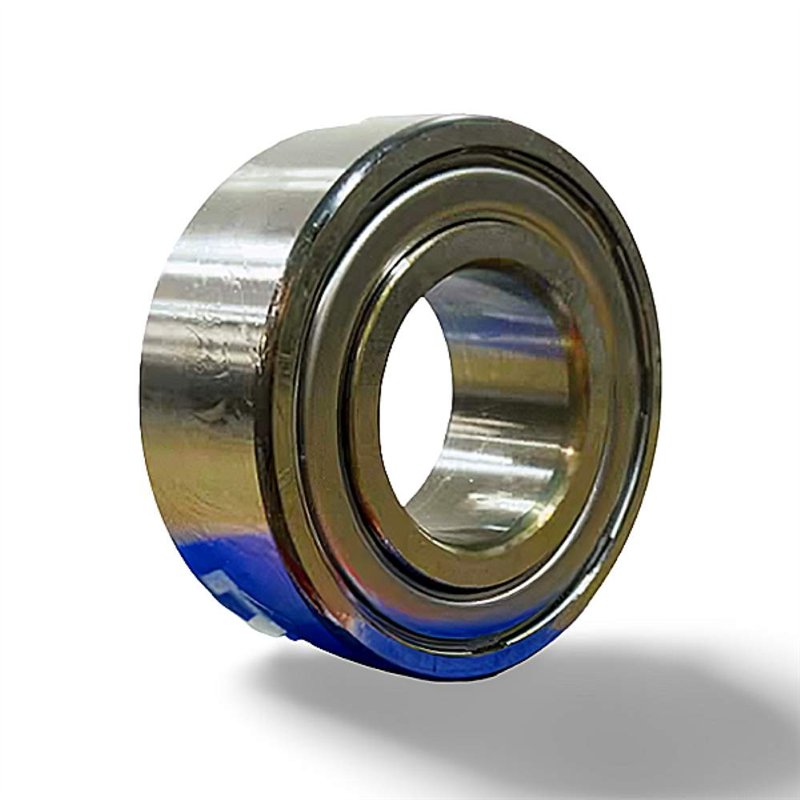

3202ZZ RICH Double Row Angular-Contact Ball Bearing - 15 x 35 x 15.9 mm

The 3202ZZ RICH is a high-quality double row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 15 mm bore, 35 mm outer diameter, and 15.9 mm width, it offers a compact and effective solution for demanding applications.

This RICH bearing features a durable steel cage, ensuring optimal ball separation and stable operation, even under varying conditions. The double-row design of this bearing allows it to handle axial loads in both directions, making it highly versatile for applications where axial forces can fluctuate or reverse. A key characteristic of this bearing is its double-sided non-contact shields (ZZ). These shields provide effective protection against the ingress of larger contaminants, such as dust and debris, while allowing for higher rotational speeds compared to contact seals, making it suitable for applications where minimal friction and good protection are both desired.

Weighing just 0.07 kg, this lightweight yet durable component from RICH offers dependable performance and resilience. It is ideally suited for applications requiring high precision and the ability to manage combined loads in both directions, especially in environments where protection from debris is needed without compromising on rotational speed, such as small industrial machines, electric motors, and precision instruments.

Key Specifications:

• Type: Double Row Angular-Contact Ball Bearing
• Brand: RICH
• Model: 3202ZZ RICH
• Dimensions: 15 mm bore x 35 mm outer diameter x 15.9 mm width
• Bore Diameter (d): 15 mm
• Outer Diameter (D): 35 mm
• Width: 15.9 mm
• Cage Material: Steel
• Sealing: Double-sided non-contact shields (ZZ)
• Weight: 0.07 kg
• Country of Origin: China

Key Advantages:

• High Combined Load Capacity: Designed to efficiently handle both radial and axial loads in both directions.
• Durable Steel Cage: Ensures robust performance and extended service life.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
• Shielded Design (ZZ): Offers protection from larger contaminants while supporting higher operational speeds compared to contact seals.
