F-577220.01 RICH 30,16x64,29x26,7 F-577220.01 RICH
zoom_out_map
F-577220.01 RICH 30,16x64,29x26,7 F-577220.01 RICH

F-577220.01 RICH 30,16x64,29x26,7

Type: Double Row Angular Contact Ball Bearing
Model: F-577220.01 RICH
Dimensions: 30.16 x 64.29 x 26.7 mm
Brand: RICH
Origin: China
RICH
F-577220.01
€28.26
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

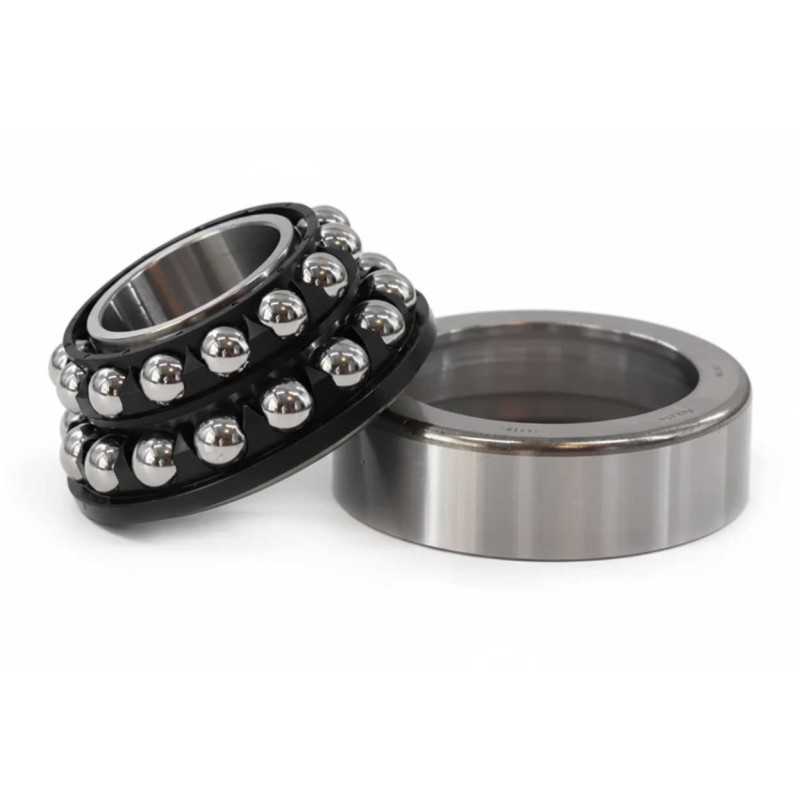

F-577220.01 RICH – Double Row Angular Contact Ball Bearing – 30.16 x 64.29 x 26.7 mm

Technical Specifications:

  • Type: Double row angular contact ball bearing
  • Brand: RICH
  • Model Designation: F-577220.01
  • Inner Diameter (d): 30.16 mm
  • Outer Diameter (D): 64.29 mm
  • Total Width (B): 26.7 mm
  • Inner Ring Width: 26.4 mm
  • Outer Ring Width (C): 19 mm
  • Cage Material: Polyamide
  • Weight: 0.38 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Advanced double-row design engineered to manage high radial loads and bidirectional axial thrust within a compact spatial envelope.
  • Cage Design: Fitted with a precision-molded polyamide cage, offering excellent elasticity and reduced frictional heat for enhanced operational efficiency in dynamic environments.
  • Load Capability: The integrated dual-row geometry provides superior mechanical stiffness and tilt resistance, ensuring precise shaft location and stable performance under combined loading.
  • Mechanical Interface: 30.16 x 64.29 x 26.7 mm dimensional format manufactured to automotive-grade tolerances for reliable fitment in transmission systems and specialized drivetrain assemblies.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30,16
Outer Diameter
64,29
Width
26,7
Cage
Polyamide Cage
Category
Double Row Angular-Contact Ball Bearing
