SS 3303 2RS RICH 17x47x22,2 SS-3303-2RS RICH
search
  • SS 3303 2RS RICH 17x47x22,2 SS-3303-2RS RICH

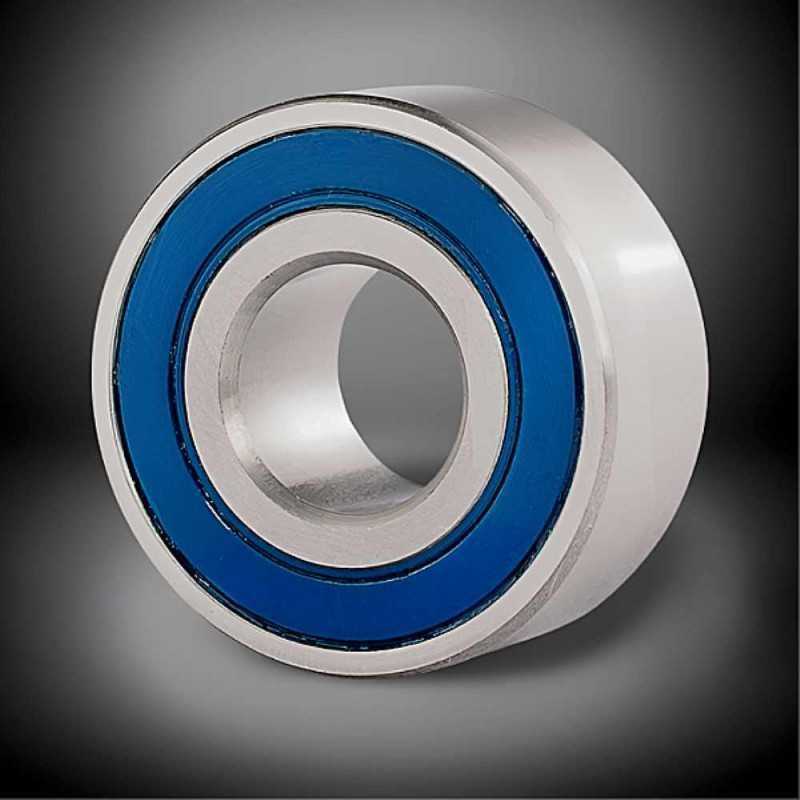

SS 3303 2RS RICH 17x47x22,2

SS 3303 2RS RICH Stainless Steel Double Row Angular-Contact Ball Bearing – dimensions 17 x 47 x 22.2 mm, weight 0.18 kg. Polyamide cage, CN clearance, double rubber contact seals. Known also as SS 5303 2RS.

RICH
SS-3303-2RS
€19.47
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

SS 3303 2RS RICH | Double Row Angular-Contact Ball Bearing (Stainless Steel) – 17 x 47 x 22.2 mm

Technical Specifications:

  • Catalog Code: SS 3303 2RS RICH
  • Known Even As: SS 5303 2RS
  • Brand: RICH
  • Bearing Type: Double Row Angular-Contact Ball Bearing
  • Material Feature: Stainless Steel
  • Inner Diameter (d): 17 mm
  • Outer Diameter (D): 47 mm
  • Total Width (B): 22.2 mm
  • Weight: 0.18 kg
  • Cage: Polyamide
  • Clearance: CN – Normal Clearance
  • Sealing: Double-Sided Rubber, Contact
  • Country of Origin: China

Key Performance Advantages:

  • Double Row Angular-Contact Design: Supports combined radial and axial loads with higher rigidity.
  • Stainless Steel Feature: Enhanced corrosion resistance and durability in demanding environments.
  • Polyamide Cage: Lightweight and low-friction guidance of rolling elements.
  • CN Clearance: Normal clearance for general-purpose applications.
  • Double Rubber Seals: Contact sealing ensures protection against dust and contaminants.
  • Optimized Dimensions: 17 mm bore, 47 mm outer diameter, 22.2 mm width.
  • RICH Quality: Precision manufactured for consistent performance and long service life.

Transparency Note: This stainless steel double row angular-contact ball bearing is manufactured directly under the RICH brand. The catalog code SS 3303 2RS (also known as SS 5303 2RS) is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand.

Data sheet

Inner Diameter
17
Outer Diameter
47
Width
22,2
Ball Rows
Double Row
Cage
Polyamide Cage
Clearance
CN (Normal)
Category
Double Row Angular-Contact Ball Bearing
