5216 M C3 RICH 80x140x44,4

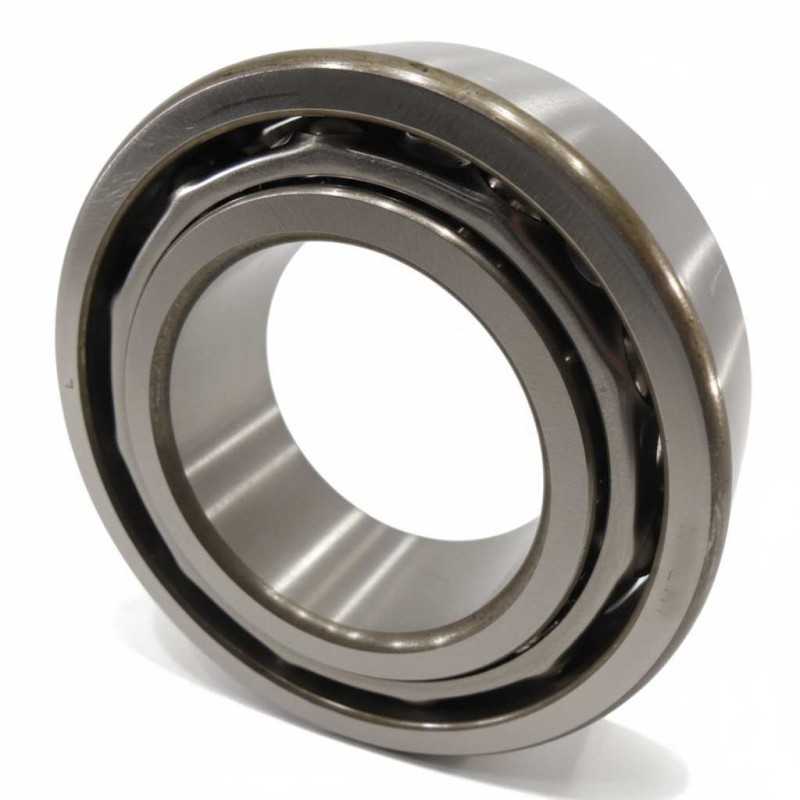

5216 M C3 RICH – Double Row Angular Contact Ball Bearing – 80 x 140 x 44.4 mm

Technical Specifications:

• Type: Double row angular contact ball bearing
• Brand: RICH
• Model Designation: 5216.M.C3
• Inner Diameter (d): 80 mm
• Outer Diameter (D): 140 mm
• Width (B): 44.4 mm
• Internal Clearance: C3 (Greater than normal)
• Cage Material: Brass (Rolling element guided)
• Sealing: None (Open)
• Weight: 2.764 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Double row angular contact design engineered for high radial and axial load capacity in heavy-duty applications.
• Cage Specification: Equipped with a machined brass cage, rolling element guided, providing superior stability and performance in high-speed or vibrating environments.
• Thermal Management: C3 internal clearance specified to accommodate thermal expansion and maintain operational precision under high temperature cycles.
• Dimensional Format: 80 x 140 x 44.4 mm bearing manufactured to standardized industrial tolerances for heavy industrial equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
