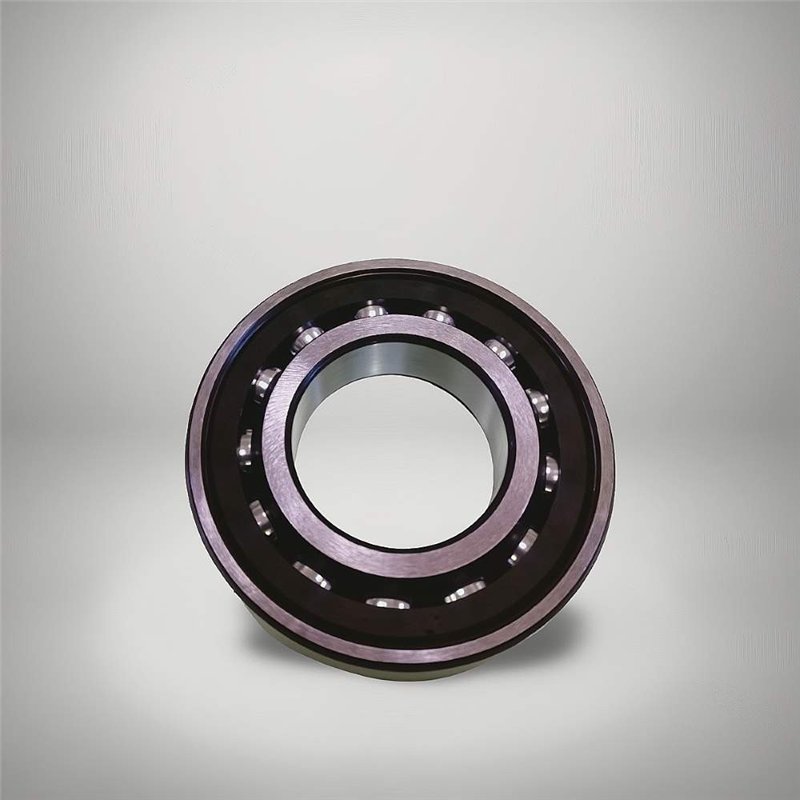

7312 RICH Single Row Angular-Contact Ball Bearing - 60 x 130 x 31 mm

The 7312 RICH is a high-quality single row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 60 mm bore, 130 mm outer diameter, and 31 mm width, it offers a robust and effective solution for demanding applications.

This RICH bearing features a robust steel cage, ensuring optimal ball separation and stable operation, even under varying conditions. A key characteristic of this bearing is its contact angle of 30°. This specific contact angle allows the bearing to support significant axial loads in one direction, in addition to radial loads. For applications where axial loads are present in both directions, two such bearings are often used in a duplex arrangement (face-to-face or back-to-back).

Weighing 1.772 kg, this durable component from RICH offers dependable performance and resilience. It is ideally suited for applications requiring high precision and the ability to manage combined loads, such as heavy machinery, industrial pumps, gearboxes, and other critical equipment where accurate shaft guidance and reliable operation under substantial forces are essential.

Key Specifications:

  • Type: Single Row Angular-Contact Ball Bearing
  • Brand: RICH
  • Model: 7312 RICH
  • Dimensions: 60 mm bore x 130 mm outer diameter x 31 mm width
  • Bore Diameter (d): 60 mm
  • Outer Diameter (D): 130 mm
  • Width: 31 mm
  • Cage Material: Steel
  • Contact Angle: 30°
  • Weight: 1.772 kg
  • Country of Origin: China

Key Advantages:

  • High Combined Load Capacity: Designed to efficiently handle substantial radial and axial loads simultaneously.
  • Precision Performance: Suitable for applications demanding high rotational accuracy.
  • Durable Steel Cage: Ensures robust performance and extended service life.
  • Optimal Contact Angle (30°): Provides strong axial load support in one direction.
  • RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.

Data sheet

Inner Diameter
60
Outer Diameter
130
Width
31
Weight
1,71
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Angular-Contact Ball Bearing
