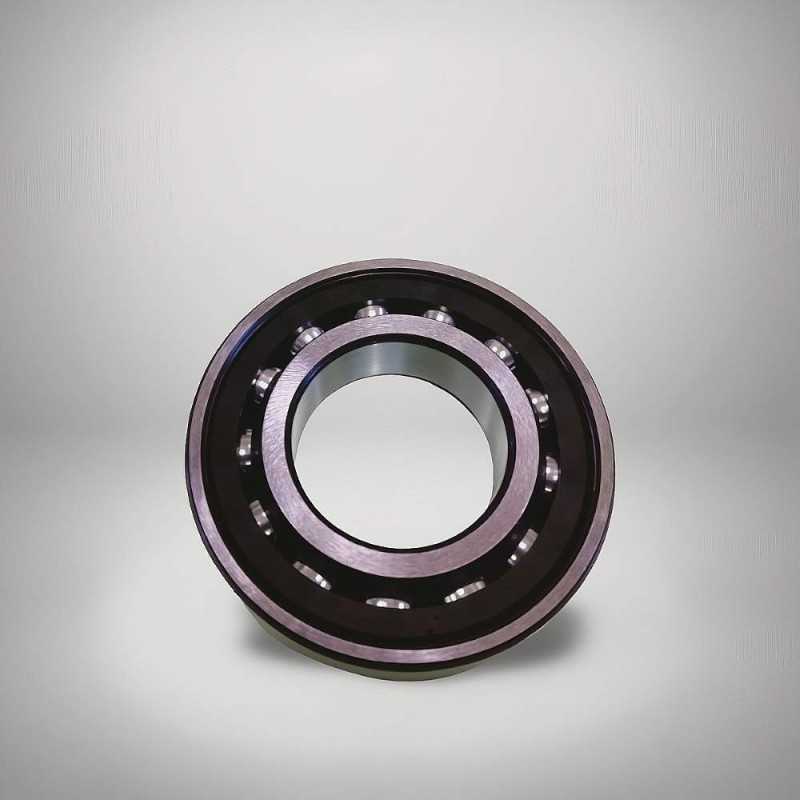

7206 RICH Single Row Angular-Contact Ball Bearing - 30 x 62 x 16 mm

The 7206 RICH is a high-quality single row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 30 mm bore, 62 mm outer diameter, and 16 mm width, it offers a robust and effective solution for demanding applications.

This RICH bearing features a steel cage, ensuring optimal ball separation and stable operation, even under varying conditions. A key characteristic of this bearing is its contact angle of 30°. This specific contact angle allows the bearing to support significant axial loads in one direction, in addition to radial loads. For applications where axial loads are present in both directions, two such bearings are often used in a duplex arrangement (face-to-face or back-to-back).

Weighing 0.207 kg, this durable component from RICH offers dependable performance and resilience. It is ideally suited for applications requiring high precision and the ability to manage combined loads, such as machine tool spindles, gearboxes, pumps, and other industrial machinery where accurate shaft guidance and reliable operation are crucial.

Key Specifications:

  • Type: Single Row Angular-Contact Ball Bearing
  • Brand: RICH
  • Model: 7206 RICH
  • Dimensions: 30 mm bore x 62 mm outer diameter x 16 mm width
  • Bore Diameter (d): 30 mm
  • Outer Diameter (D): 62 mm
  • Width: 16 mm
  • Cage Material: Steel
  • Contact Angle: 30°
  • Weight: 0.207 kg
  • Country of Origin: China

Key Advantages:

  • Combined Load Capacity: Designed to efficiently handle both radial and axial loads simultaneously.
  • High Precision: Suitable for applications requiring high rotational accuracy.
  • Durable Steel Cage: Ensures robust performance and extended service life.
  • Optimal Contact Angle (30°): Provides strong axial load support in one direction.
  • RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.

Data sheet

Inner Diameter
30
Outer Diameter
62
Width
16
Weight
0,207
Ball Rows
Single Row
Cage
Polyamide Cage
Clearance
CN (Normal)
Category
Single Row Angular-Contact Ball Bearing
