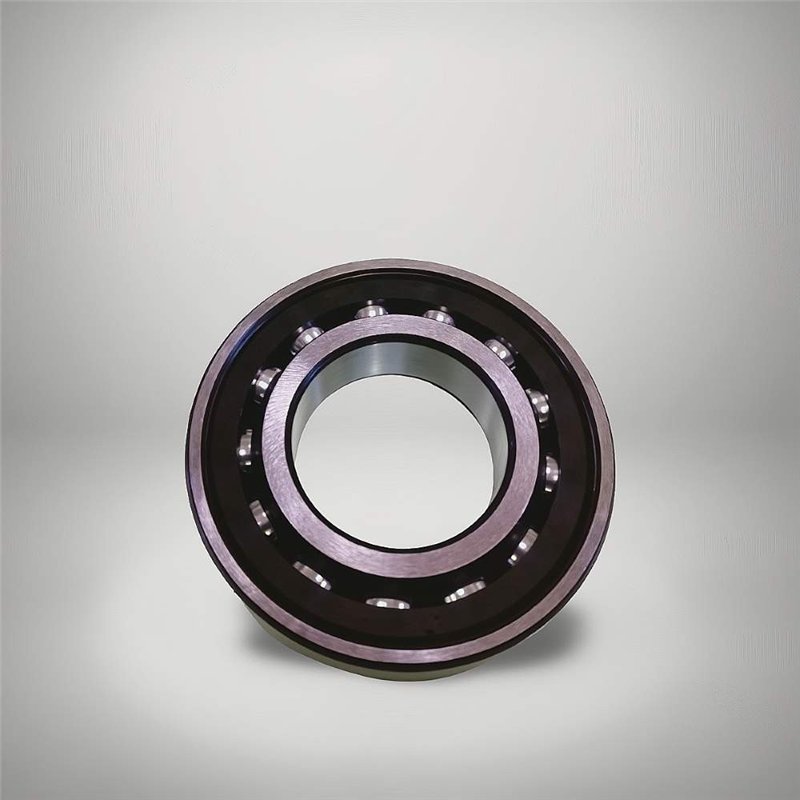

7207 RICH Single Row Angular-Contact Ball Bearing - 35 x 72 x 17 mm
The 7207 RICH is a premium single row angular-contact ball bearing carefully manufactured by RICH in China. Designed to handle combined radial and axial loads simultaneously, this precision bearing measures 35 mm bore, 72 mm outer diameter, and 17 mm width, providing a robust solution for demanding industrial applications.
It features a durable steel cage that ensures optimal ball separation and stable operation under varying conditions. With a 30° contact angle, the bearing offers strong axial load support in one direction, making it ideal for precise shaft guidance. For applications where axial loads occur in both directions, two 7207 bearings can be used in duplex arrangements (face-to-face or back-to-back).
Weighing 0.292 kg, this reliable component from RICH delivers consistent performance and durability. It is perfect for machine tool spindles, gearboxes, pumps, and other industrial machinery that require high precision and combined load capacity.
Key Specifications: Type: Single Row Angular-Contact Ball Bearing; Brand: RICH; Model: 7207 RICH; Dimensions: 35 mm bore x 72 mm outer diameter x 17 mm width; Bore Diameter (d): 35 mm; Outer Diameter (D): 72 mm; Width (B): 17 mm; Cage Material: Steel; Contact Angle: 30°; Weight: 0.292 kg; Country of Origin: China.
Key Advantages: Efficient combined load handling of radial and axial forces; high rotational accuracy; durable steel cage for extended service life; optimal 30° contact angle for strong axial support; manufactured by RICH in China ensuring reliable quality.
Data sheet
Inner Diameter
35
Outer Diameter
72
Width
17
Weight
0,27
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Angular-Contact Ball Bearing
