3214 RICH 70x125x39,7

RICH
3214
€32.03
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

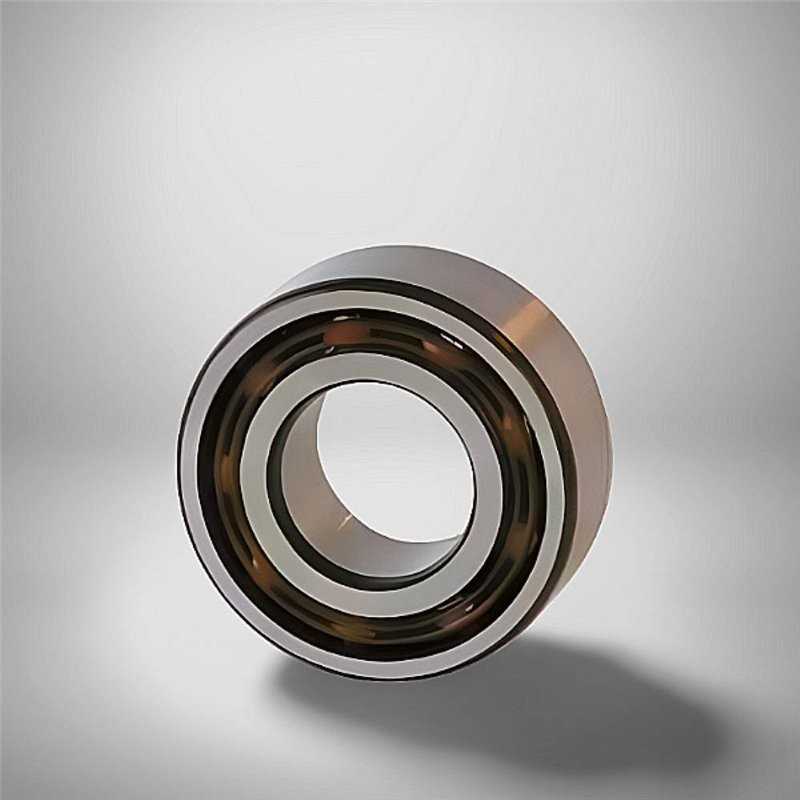

3214 RICH Double Row Angular-Contact Ball Bearing - 70 x 125 x 39.7 mm

The 3214 RICH is a high-quality double row angular-contact ball bearing, meticulously manufactured by RICH in China. This bearing is expertly designed to accommodate high radial loads and axial loads in both directions. It is particularly suitable for applications requiring stiff bearing arrangements and capable of handling tilting moments. With precise dimensions of 70 mm bore, 125 mm outer diameter, and 39.7 mm width, it offers a robust and effective solution for a wide range of demanding industrial applications.

This RICH bearing features a durable steel cage, ensuring robust performance and reliability. It has a CN (normal) clearance, indicating a standard radial internal clearance suitable for most general applications. This specific model comes with no seals, making it suitable for applications where the bearing operates in a clean environment or where external lubrication is provided.

Weighing 1.85 kg, this substantial and dependable component from RICH offers reliable performance and resilience. It is ideally suited for applications such as pumps, compressors, machine tool spindles, and gearboxes, where its ability to handle combined loads and maintain high rigidity is crucial.

Key Specifications:

  • Type: Double Row Angular-Contact Ball Bearing
  • Brand: RICH
  • Model: 3214 RICH
  • Dimensions: 70 mm bore x 125 mm outer diameter x 39.7 mm width
  • Bore Diameter (d): 70 mm
  • Outer Diameter (D): 125 mm
  • Width: 39.7 mm
  • Cage Material: Steel
  • Clearance: CN - normal clearance
  • Sealing: Open (No seals)
  • Weight: 1.85 kg
  • Country of Origin: China

Key Advantages:

  • High Combined Load Capacity: Efficiently handles high radial loads and axial loads in both directions.
  • Accommodates Tilting Moments: Ideal for applications subjected to tilting loads.
  • High Rigidity: Provides stiff and precise bearing arrangements, crucial for applications requiring high accuracy.
  • Durable Steel Cage: Ensures robust performance and high reliability under various operating conditions.
  • Optimal Clearance (CN): Normal radial internal clearance provides balanced performance for most general applications.
  • RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.

Data sheet

Inner Diameter
70
Outer Diameter
125
Width
39,7
Weight
1,83
Ball Rows
Double Row
Clearance
CN (Normal)
Category
Double Row Angular-Contact Ball Bearing
