3220 RICH 100x180x60,3 3220 RICH
search
  • 3220 RICH 100x180x60,3 3220 RICH

3220 RICH 100x180x60,3

RICH
3220
€97.20
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

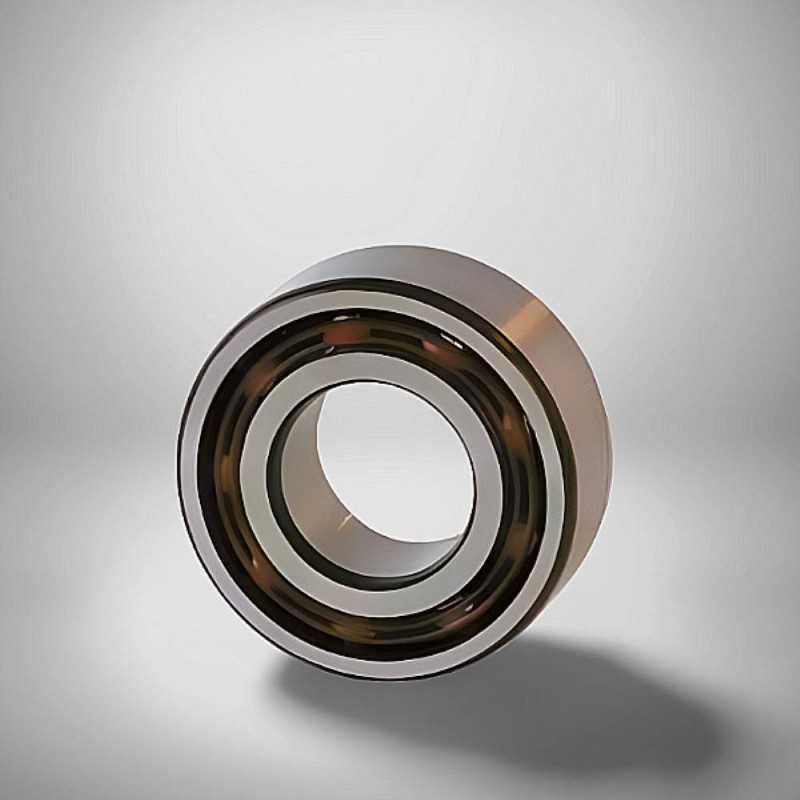

3220 RICH Double Row Angular Contact Ball Bearing - 100 x 180 x 60.3 mm

The 3220 RICH is a double row angular contact ball bearing designed to accommodate combined radial and axial loads in both directions. This robust bearing has key dimensions of 100 mm inner diameter, 180 mm outer diameter, and a width of 60.3 mm. It features a steel cage, has CN (normal) clearance, and no seals. It weighs 6.066 kg and is made in China. Double row angular contact ball bearings provide rigid bearing arrangements and can handle substantial loads compared to single row bearings. The absence of seals indicates this bearing is intended for applications where external lubrication and protection are provided.

Key Specifications:

  • Bearing Type: Double Row Angular Contact Ball Bearing
  • Model: 3220 RICH
  • Inner Diameter (d): 100 mm
  • Outer Diameter (D): 180 mm
  • Width (B): 60.3 mm
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Sealing:** None
  • Weight:** 5.5 kg
  • Country of Origin:** China

Key Features:

  • Double Row Design:** Provides high load capacity and rigidity.
  • Angular Contact:** Suitable for combined radial and axial loads in both directions.
  • Steel Cage:** Offers high strength and durability.
  • No Seals:** Designed for applications with external lubrication and protection.
  • Robust Construction:** Capable of withstanding significant combined loads.
  • Versatile Application:** Suitable for various heavy-duty industrial applications.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
100
Outer Diameter
180
Width
60,3
Ball Rows
Double Row
Clearance
CN (Normal)
