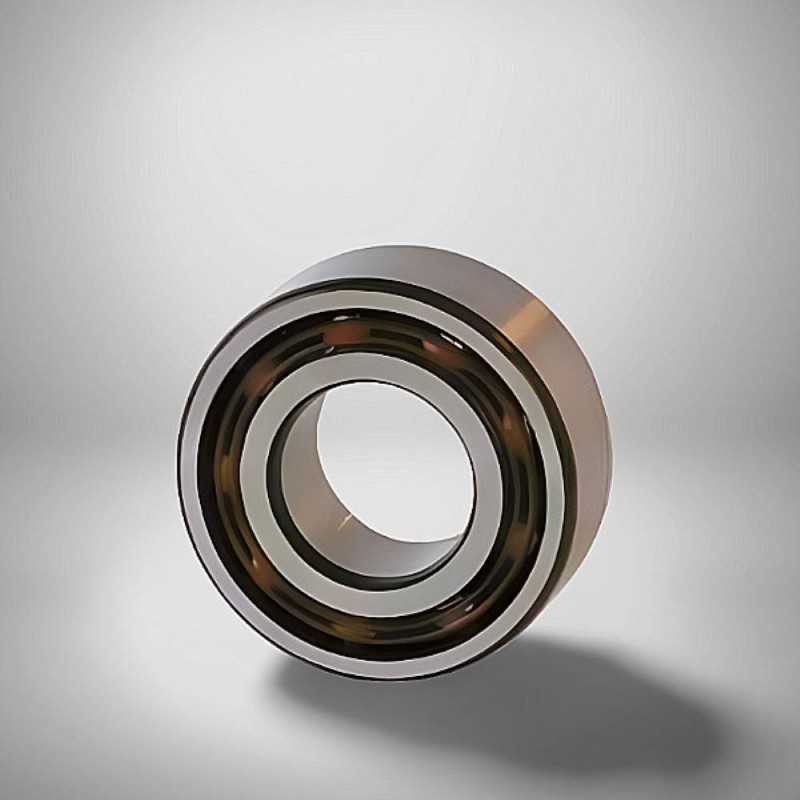

3308 RICH Double Row Angular Contact Ball Bearing - 40 x 90 x 36.5 mm

The 3308 RICH is a double row angular contact ball bearing designed to accommodate combined radial and axial loads in both directions. This bearing has key dimensions of 40 mm inner diameter, 90 mm outer diameter, and a width of 36.5 mm. It features a steel cage, has CN (normal) clearance, and no seals. It contains 12 balls and weighs 0.91 kg. It is made in China. Double row angular contact ball bearings provide rigid bearing arrangements and can handle higher loads compared to single row bearings. The absence of seals indicates this bearing is intended for applications where external lubrication and protection are provided.

Key Specifications:

  • Bearing Type: Double Row Angular Contact Ball Bearing
  • Model: 3308 RICH
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 90 mm
  • Width (B): 36.5 mm
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Number of Balls:** 12
  • Sealing:** None
  • Weight:** 0.91 kg
  • Country of Origin:** China

Key Features:

  • Double Row Design:** Provides increased load capacity and rigidity.
  • Angular Contact:** Suitable for combined radial and axial loads in both directions.
  • Steel Cage:** Offers high strength and durability.
  • Unsealed Design:** Requires external lubrication and protection.
  • Versatile Application:** Suitable for various industrial applications requiring high load capacity and rigidity where external sealing and lubrication are managed.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
40
Outer Diameter
90
Width
36,5
Ball Rows
Double Row
Clearance
CN (Normal)
