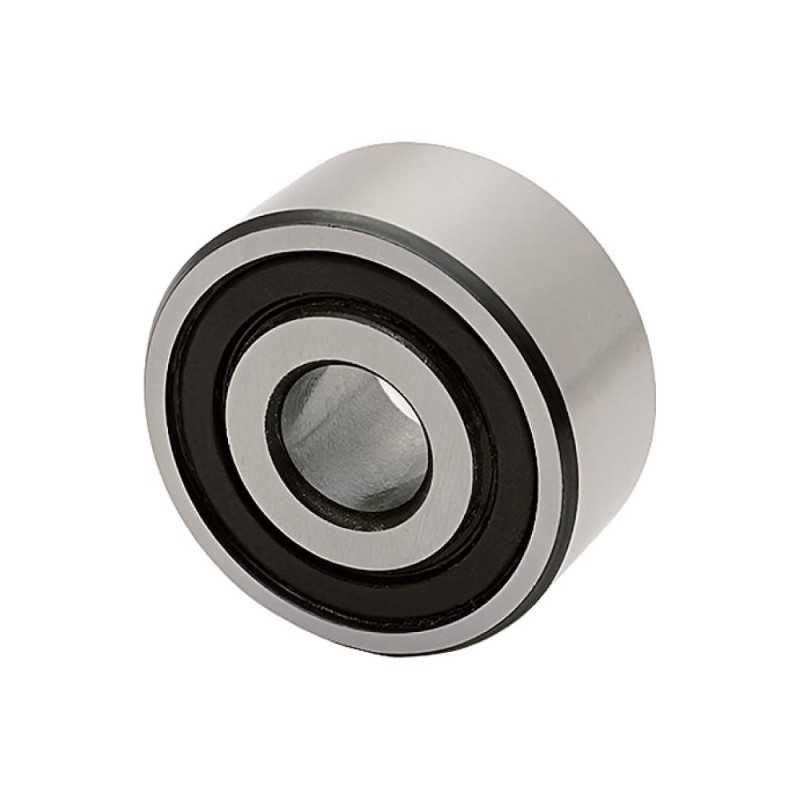

3204-2RS RICH Double Row Angular Contact Ball Bearing - 20 x 47 x 20.6 mm

The 3204-2RS RICH is a double row angular contact ball bearing designed to accommodate combined radial and axial loads in both directions. This bearing has key dimensions of 20 mm inner diameter, 47 mm outer diameter, and a width of 20.6 mm. It features a polyamide cage, has CN (normal) clearance, and double-sided rubber contact seals. It weighs 0.155 kg and is made in China. This bearing is known to be used in equipment from HESSTON, HORSCH, JOHN DEERE, MASCHIO GASPARDO, MONOSEM, and KONGSKILDE, with numerous Known OE References: 700.055.356 (HESSTON), 00240161 (HORSCH), JD9243T (JOHN DEERE), EMS000676R (MASCHIO GASPARDO), 10161020, 7014A (MONOSEM), and 200062544 (KONGSKILDE). Double row angular contact ball bearings provide rigid bearing arrangements and can handle higher loads compared to single row bearings.

Key Specifications:

  • Bearing Type: Double Row Angular Contact Ball Bearing
  • Model: 3204-2RS RICH
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 47 mm
  • Width (B): 20.6 mm
  • Cage Material:** Polyamide
  • Clearance:** CN (Normal)
  • Sealing:** Double-sided Rubber, Contact
  • Weight:** 0.155 kg
  • Country of Origin:** China
  • Known OE References:** 700.055.356 (HESSTON), 00240161 (HORSCH), JD9243T (JOHN DEERE), EMS000676R (MASCHIO GASPARDO), 10161020, 7014A (MONOSEM), 200062544 (KONGSKILDE)

Key Features:

  • Double Row Design:** Provides increased load capacity and rigidity.
  • Angular Contact:** Suitable for combined radial and axial loads in both directions.
  • Polyamide Cage:** Offers good sliding properties and reduces noise.
  • Double-Sided Rubber Seals:** Protects against contaminants.
  • Versatile Application:** This bearing is known to be used across multiple agricultural equipment manufacturers.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
20,6
Ball Rows
Double Row
Sealing
Lip Seal On Both Sides
Cage
Polyamide Cage
Clearance
CN (Normal)
Category
Double Row Angular-Contact Ball Bearing
