3202 RICH 15x35x15,9

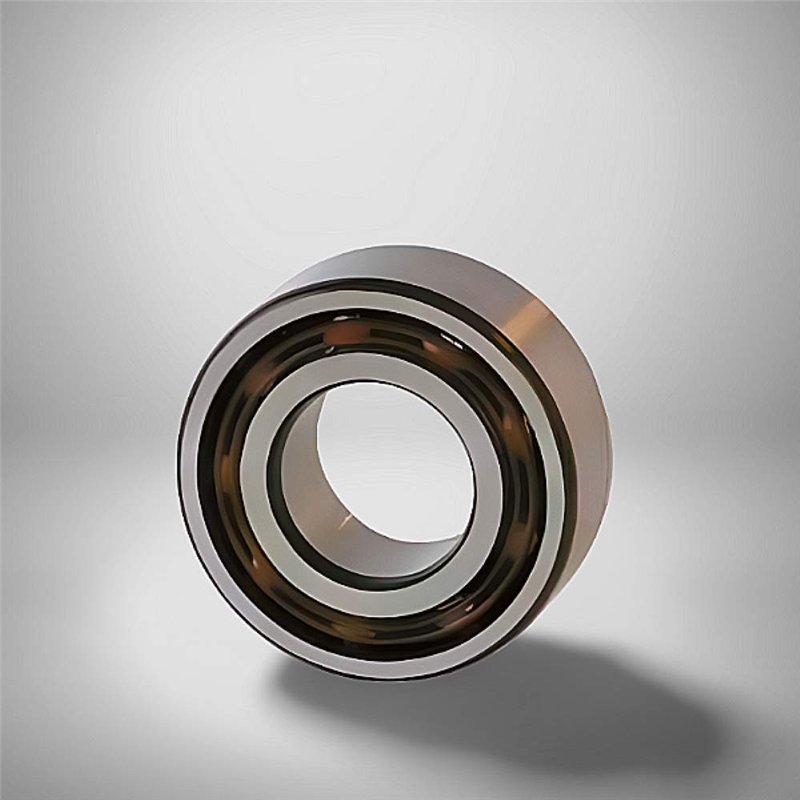

3202 RICH Double Row Angular-Contact Ball Bearing - 15 x 35 x 15.9 mm

The 3202 RICH is a high-quality double row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 15 mm bore, 35 mm outer diameter, and 15.9 mm width, it offers a robust and effective solution for demanding applications.

This RICH bearing features a durable steel cage, ensuring optimal ball separation and stable operation, even under varying conditions. It has a CN (normal) clearance, indicating a standard radial internal clearance that is suitable for most general applications. The double-row design of this bearing allows it to handle axial loads in both directions, making it highly versatile for applications where axial forces can fluctuate or reverse. This bearing comes with no seals, making it suitable for applications where the bearing operates in a clean environment or where external lubrication is provided.

Weighing just 0.071 kg, this durable component from RICH offers dependable performance and resilience. It is ideally suited for applications requiring high precision and the ability to manage combined loads in both directions, such as pumps, compressors, and various industrial machines where robust and reliable operation is crucial.

Key Specifications:

• Type: Double Row Angular-Contact Ball Bearing
• Brand: RICH
• Model: 3202 RICH
• Dimensions: 15 mm bore x 35 mm outer diameter x 15.9 mm width
• Bore Diameter (d): 15 mm
• Outer Diameter (D): 35 mm
• Width: 15.9 mm
• Cage Material: Steel
• Clearance: CN - normal clearance
• Sealing: None
• Weight: 0.071 kg
• Country of Origin: China

Key Advantages:

• High Combined Load Capacity: Designed to efficiently handle both radial and axial loads in both directions.
• Durable Steel Cage: Ensures robust performance and extended service life.
• Optimal Clearance (CN): Normal radial internal clearance provides balanced performance for most general applications.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
• Unsealed Design: Ideal for applications requiring external lubrication or operating in clean environments.
