  • DAC 34660037 RICH 34x66x37 DAC34660037 RICH

DAC 34660037 RICH 34x66x37

RICH
DAC34660037
€7.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

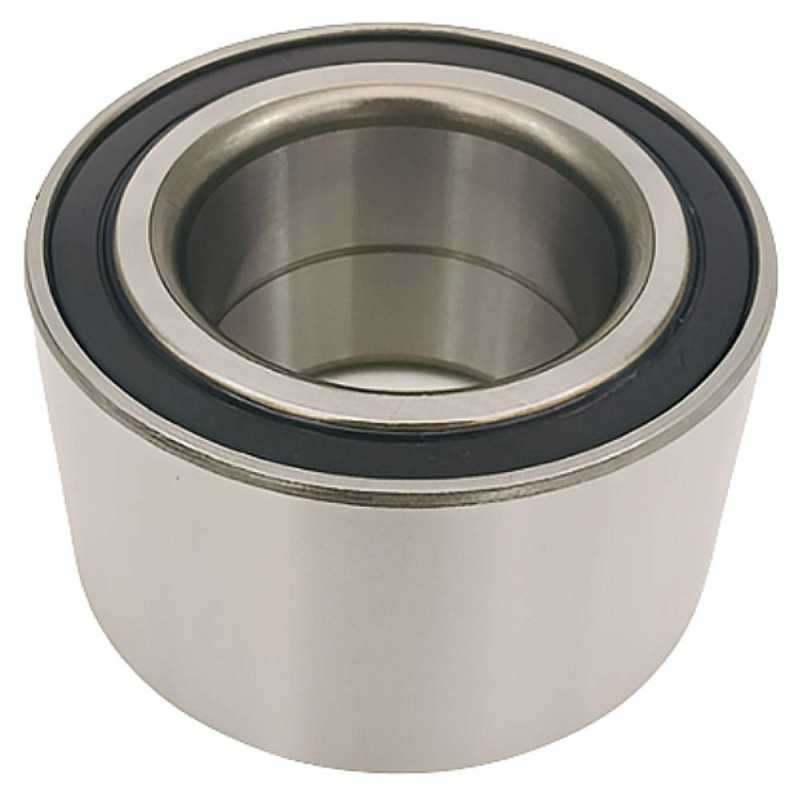

Double Row Angular-Contact Ball Bearing DAC346637 RICH - 34 x 66 x 37 mm (Sealed)

The DAC346637 RICH is a high-quality double row angular-contact ball bearing, precisely engineered to accommodate both radial and axial loads in both directions. This type of bearing is particularly well-suited for applications demanding high rigidity and accurate shaft guidance, thanks to its angular contact geometry that ensures superior performance under combined loading conditions. It features a C3 clearance, indicating that it has a radial internal clearance greater than normal, which can be beneficial for applications involving thermal expansion or potential misalignment. Equipped with double-sided rubber contact seals, it provides exceptional protection against contaminants like dust, dirt, and moisture, while effectively retaining internal lubrication. This robust sealing significantly extends the bearing's service life and reduces the need for maintenance, even in demanding operating environments. Its dimensions are a 34 mm bore diameter, 66 mm outer diameter, and a width of 37 mm. It has a weight of 0.49 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Double Row Angular-Contact Ball Bearing
  • Dimensions: 34 mm bore diameter x 66 mm outer diameter x 37 mm width
  • Weight: 0.49 kg
  • Sealing: Double-sided rubber, contact
  • Country of Origin: China
  • Brand: RICH
  • Known OE References:
    • FAG: 580400CA, 713664150, 805464
    • INA: F-110487.1
    • NSK: 34BWD10B
    • Opel: 328106, 1603195
    • SKF: VKBA3403, BAHB636114A
    • SNR: R153.25
    • Vauxhall: 90510544, 90447280

Key Advantages:

  • Manages both radial and axial loads in both directions
  • Provides high rigidity and precise shaft guidance
  • C3 clearance for applications with specific thermal or alignment needs
  • Optimized for superior performance under combined loads
  • Double-sided rubber seals offer excellent contamination protection
  • Contributes to extended operational life and reduced maintenance
  • Suitable for a wide range of industrial and automotive applications

Data sheet

Inner Diameter
34
Outer Diameter
66
Width
37
Weight
0,49
Category
Double Row Angular-Contact Ball Bearing
