  • DAC35500020 RICH 35x50x20 DAC35500020 RICH

DAC35500020 RICH 35x50x20

Designed for air conditioning systems, the DAC 35500020 RICH double row angular-contact ball bearing offers durability and high-speed performance.

RICH
DAC35500020
€5.99
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

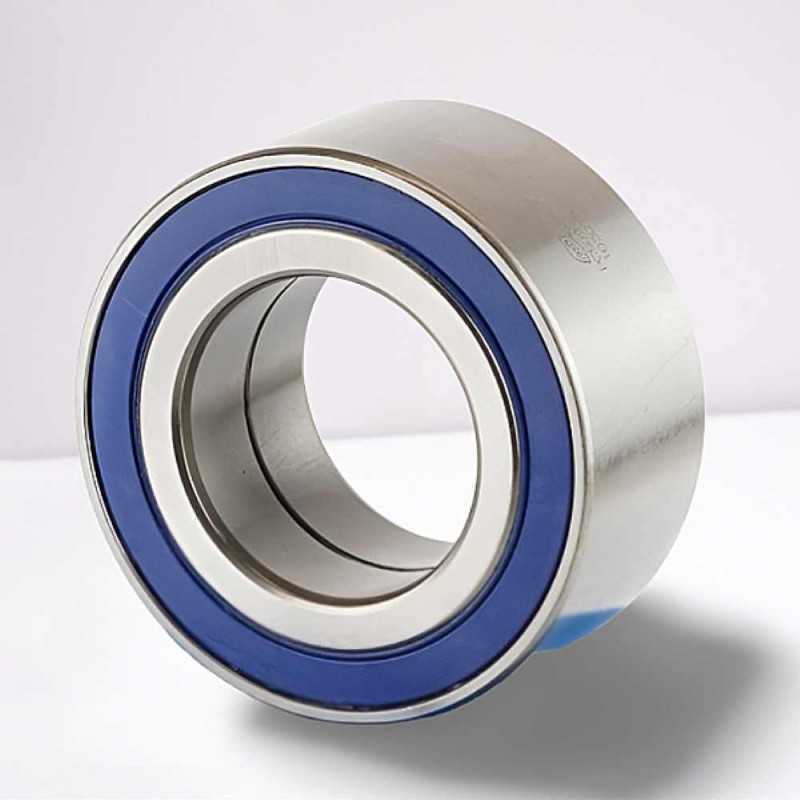

DAC 35500020 RICH Double Row Angular-Contact Ball Bearing - 35 x 50 x 20 mm

The DAC 35500020 RICH double row angular-contact ball bearing is specifically engineered as a high-performance component for air conditioning systems. This bearing is designed to handle combined radial and axial loads with high rigidity. It features a double-sided rubber seal to protect against contaminants and a C3 clearance, making it suitable for high-speed operation. With precise dimensions of 35 mm inner diameter, 50 mm outer diameter, and a width of 20 mm, this bearing ensures an optimal fit and reliable performance. Weighing 0.1 kg, this high-quality RICH bearing is a dependable solution for demanding automotive applications.

OE References:

  • NACHI: 35BGS5S07G-2DS7, 35BG05S7G-2DL, 35BG05S7G02DST, 35BG05S7G02DL
  • KOYO: DAC35500020
  • FERSA: F 16099A
  • NSK: 35BD5020DDUCG21
  • CARGO: 250187
  • Vetor - Brazil: 35BG05S7DL

Technical Specifications:

  • Bearing Type: Double Row Angular-Contact Ball Bearing
  • Model Designation: DAC 35500020
  • Brand: RICH
  • Dimensions: 35 x 50 x 20 mm
  • Inner Diameter (d): 35 mm
  • Outer Diameter (D): 50 mm
  • Width (B): 20 mm
  • Clearance: C3 - greater than normal
  • Sealing: Double-sided rubber, contact
  • Product Feature: Air conditioner bearing
  • Weight: 0.1 kg

Key Performance Advantages:

  • Optimized for AC Systems: Specifically designed for high-speed performance in air conditioner compressors.
  • High Rigidity: Double row design provides stability and handles combined loads effectively.
  • C3 Clearance: Offers greater than normal clearance, ideal for high-speed applications.
  • Sealed for Durability: Double-sided rubber seals protect against contaminants for extended service life.
  • RICH Quality: Engineered for reliable and consistent performance.

Data sheet

Inner Diameter
35
Outer Diameter
50
Width
20
Weight
0,1
Ball Rows
Double Row
Clearance
CN (Normal)
