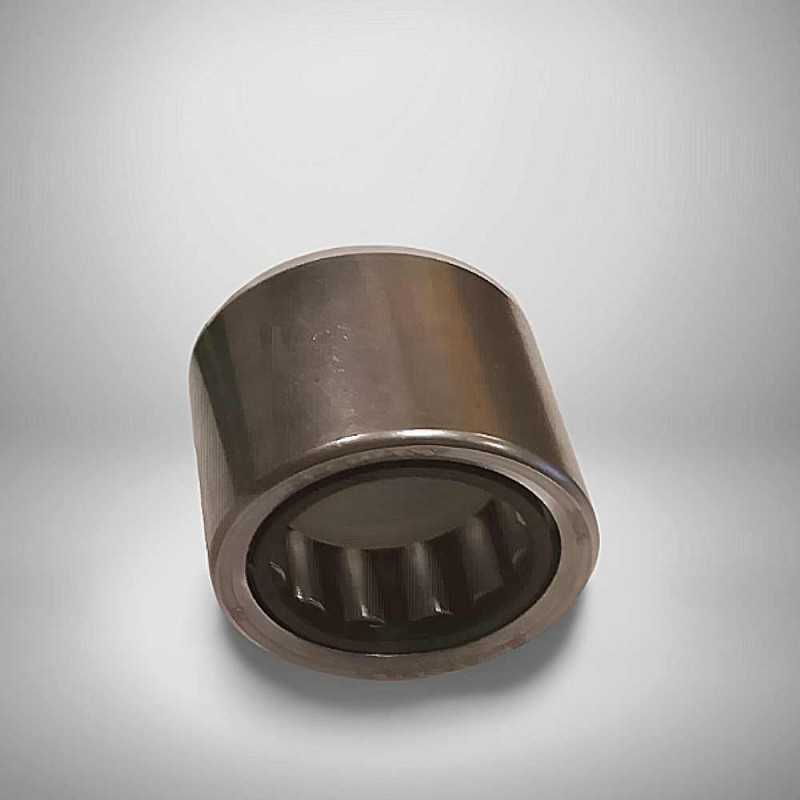

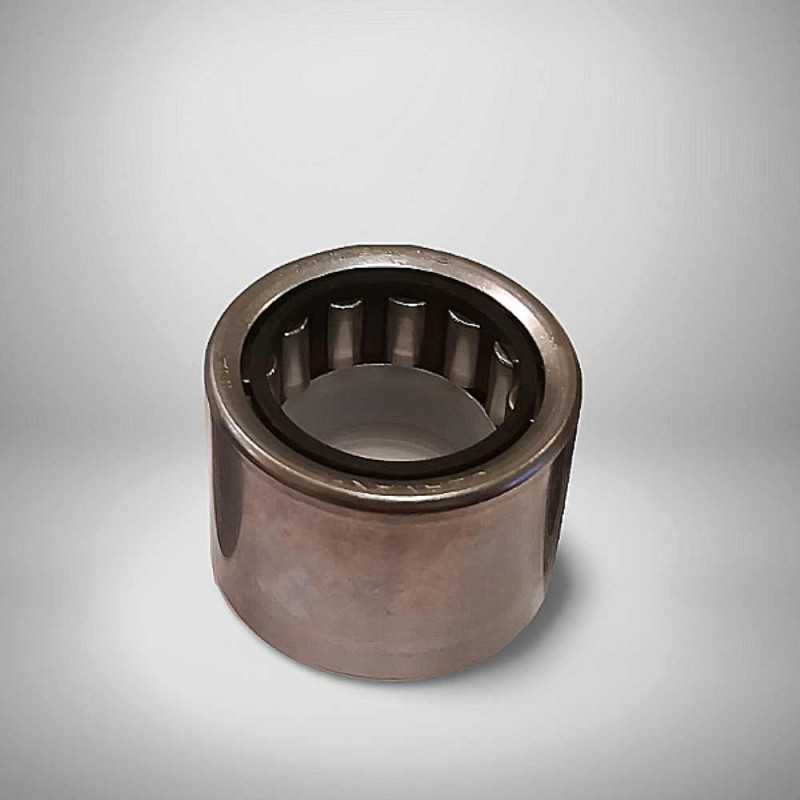

RC-123471-R3 (F-1234713) RICH 24,5x40x28,25

RICH RC-123471-R3 – 24.5x40x28.25 mm – Cylindrical Roller Bearing Without Inner Ring

OE References and Interchanges:

• Renault 8200055372
• Renault 8200142677
• INA F-123471.3

Technical Specifications:

• Type: Cylindrical Roller Bearing Without Inner Ring
• Brand: RICH
• Model Designation: RC-123471-R3 RICH
• Inner Diameter (d): 24.5 mm (Bore Diameter)
• Outer Diameter (D): 40 mm
• Width (B): 28.25 mm
• Weight: 0.084 kg
• Sealing: One-sided Plastic Seal (Contact)
• Country of Origin: China

The RICH RC-123471-R3 is a specialized cylindrical roller bearing designed without an inner ring, offering a compact and highly robust solution for applications with limited radial space. This bearing showcases RICH's commitment to delivering durable and precise components for demanding industrial and automotive systems.

With precise dimensions of 24.5 mm bore diameter, 40 mm outer diameter, and 28.25 mm width, the RC-123471-R3 RICH is ideally suited for various types of machinery where the shaft itself can serve as the inner raceway. This design provides maximum shaft diameter for a given housing bore, allowing for greater rigidity and load capacity in a compact envelope. Cylindrical roller bearings are known for their high radial load capacity, and this configuration further optimizes space utilization. The one-sided plastic contact seal offers effective protection against contaminants from one side while retaining lubricant, making it suitable for environments where directed sealing is beneficial. Manufactured in China, this RICH cylindrical roller bearing ensures consistent quality and dependable performance, providing a trustworthy solution for gearboxes, automotive transmissions, and other applications requiring compact, high-performance radial support.

Key Performance Advantages:

• Space-Saving Design: Eliminates the need for a separate inner ring, allowing for a larger shaft diameter in limited radial space.
• High Radial Load Capacity: Efficiently handles heavy radial loads due to the line contact between rollers and raceways.
• Compact Solution: Ideal for applications with tight design constraints.
• One-sided Sealing: Provides directed protection against contaminants and aids in lubricant retention.
• RICH Quality: Produced in China, ensuring consistent quality and dependable performance.
