F-805315.02 RICH 29,998x72x27,8

Designed for precision-guided applications, the <b>F-805315.02 RICH</b> flanged deep groove ball bearing offers a robust and precise solution with easy mounting.

RICH
F-805315
€18.86
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

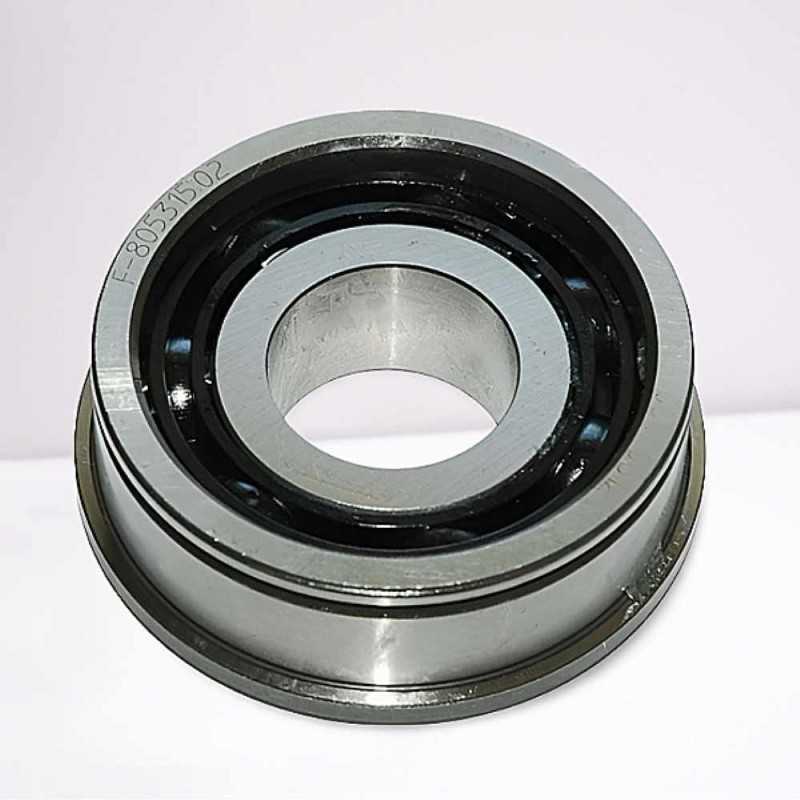

F-805315.02 RICH Flanged Deep Groove Ball Bearing - 29.998 x 72 x 27.8 mm

Interchangeable Part Numbers:

  • VW: 0A5311235B

Technical Specifications:

  • Bearing Type: Flanged Deep Groove Ball Bearing
  • Model Designation: F-805315.02
  • Brand: RICH
  • Dimensions: 29.998 x 72 x 27.8 mm
  • Inner Diameter (d): 29.998 mm
  • Outer Diameter (D): 72 mm
  • Flange Diameter (D1): 77 mm
  • Width (B): 27.8 mm
  • Inner Ring Width: 23 mm
  • Outer Ring: With groove
  • Sealing: None (Open)
  • Weight: 0.448 kg

The F-805315.02 RICH is a high-quality flanged deep groove ball bearing engineered for precise and reliable operation. Its integrated flange and a groove on the outer ring facilitate accurate mounting and positioning, while providing a compact and efficient solution. This bearing features an open design with no seals, making it suitable for environments where an external sealing solution is used. With precise dimensions of 29.998 mm inner diameter, 72 mm outer diameter, and an overall width of 27.8 mm, this RICH bearing is built for demanding applications. Its flange diameter measures 77 mm, further aiding in accurate installation. Weighing 0.448 kg, it provides a robust and dependable component for a wide range of uses.

Key Performance Advantages:

  • Integrated Flange: Simplifies mounting and ensures precise positioning.
  • Outer Ring Groove: Further aids in accurate installation.
  • High-Speed Capability: Optimized for high-speed performance.
  • Versatile Open Design: Ideal for systems with existing external sealing.
  • RICH Quality: A dependable and robust component for a wide range of uses.

Data sheet

Inner Diameter
29,998
Outer Diameter
72
Width
27,8
Weight
0,448
Ball Rows
Single Row
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
