1680207 RICH 35x80x23

The 1680207 RICH insert ball bearing is designed with a rounded outer ring and 1:12 taper bore for easy mounting and enhanced performance.

RICH
1680207
€8.05
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

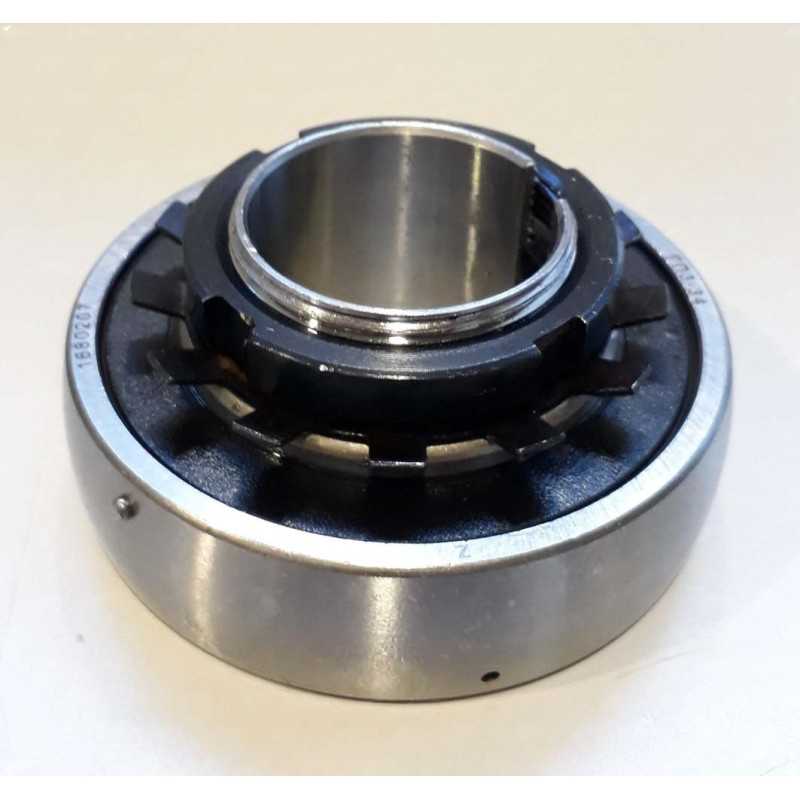

1680207 RICH Insert Ball Bearing - 35 x 80 x 23 mm

Technical Specifications:

  • Bearing Type: Insert Ball Bearing with Adapter Sleeve
  • Model Designation: 1680207
  • Brand: RICH
  • Dimensions: 35 x 80 x 23 mm
  • Inner Diameter (d): 35 mm
  • Outer Diameter (D): 80 mm
  • Width (B): 23 mm
  • Inner Ring Width: 30 mm
  • Outer Ring: Rounded
  • Taper: 1:12
  • Grease: C17 - Litol-24
  • Weight: 0.508 kg

The 1680207 RICH is a specialized insert ball bearing with a tapered bore designed for use with an adapter sleeve, featuring a 1:12 taper. The bearing is pre-lubricated with C17 - Litol-24 grease for long-lasting performance. Its rounded outer ring facilitates smooth alignment in applications where the housing is not perfectly aligned. With precise dimensions of 35 mm inner diameter, 80 mm outer diameter, and a width of 23 mm, this RICH bearing provides a dependable and versatile component. The inner ring has a width of 30 mm, ensuring a secure fit. Weighing 0.508 kg, it offers a solid and reliable solution for a wide range of uses.

Key Performance Advantages:

  • Tapered Bore (1:12): Simplifies mounting and dismounting on shafts with an adapter sleeve.
  • Rounded Outer Ring: Accommodates misalignment for enhanced performance.
  • Pre-Lubricated: Filled with C17 - Litol-24 grease for immediate and reliable operation.
  • High Versatility: Ideal for various industrial applications requiring a secure fit.
  • RICH Quality: A reliable and robust component for a wide range of uses.

Data sheet

Inner Diameter
35
Outer Diameter
80
Width
23
Weight
0,508
