572813 RICH 70x150x65

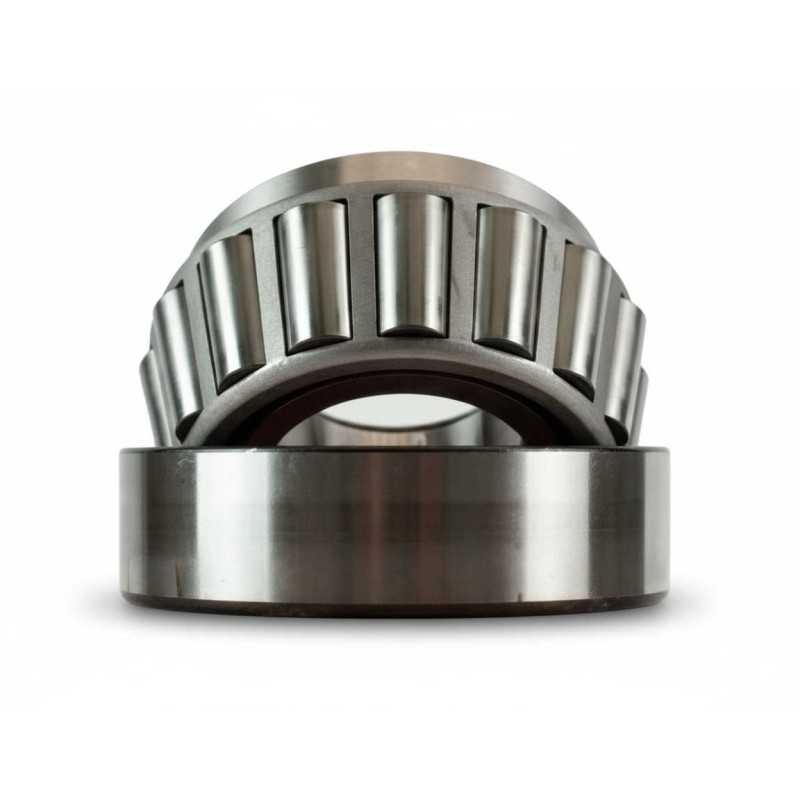

572813 RICH – Single Row Tapered Roller Bearing – 70 x 150 x 64 mm

OE References:

• A0139814305 MERCEDES-BENZ

Technical Specifications:

• Type: Single row tapered roller bearing
• Brand: RICH
• Model Designation: 572813
• Inner Diameter (d): 70 mm
• Outer Diameter (D): 150 mm
• Total Width (T): 64 mm
• Inner Ring Width (B): 61.5 mm
• Outer Ring Width (C): 42 mm
• Cage Material: Steel
• Weight: 4.9 kg
• Country of Origin: China

Construction Characteristics:

• Tapered roller geometry: Single row configuration with conical rolling elements designed for combined radial and axial load distribution.
• Separable assembly: Inner ring cone and outer ring cup designed as independent components for mounting and inspection procedures.
• Steel cage structure: Pressed steel cage designed to maintain roller spacing and ensure uniform load distribution across the raceways.
• Dimensional stability: 70 mm bore diameter and 150 mm outer diameter with 64 mm overall width ensuring standardized housing compatibility.

Dimensional Format:

• Format: 70 × 150 × 64 mm (d × D × T)
• Component split: B (inner ring width) 61.5 mm / C (outer ring width) 42 mm

Transparency Note: This bearing is manufactured under the RICH brand. OE reference numbers are provided for identification purposes only and do not imply any affiliation with original equipment manufacturers.
