B75-55 NXC3 RICH 75x110x18 B7555NXC3 RICH
zoom_out_map
B75-55 NXC3 RICH 75x110x18 B7555NXC3 RICH

B75-55 NXC3 RICH 75x110x18

Type: Single Row Deep Groove Ball Bearing
Model: B75-55 NXC3 RICH
Dimensions: 75 x 110 x 18 mm
Clearance: C3
Features: Outer ring groove, Steel cage
OE Compatibility: 90363-75001 TOYOTA
Brand: RICH
Origin: China
RICH
B7555NXC3
€50.82
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

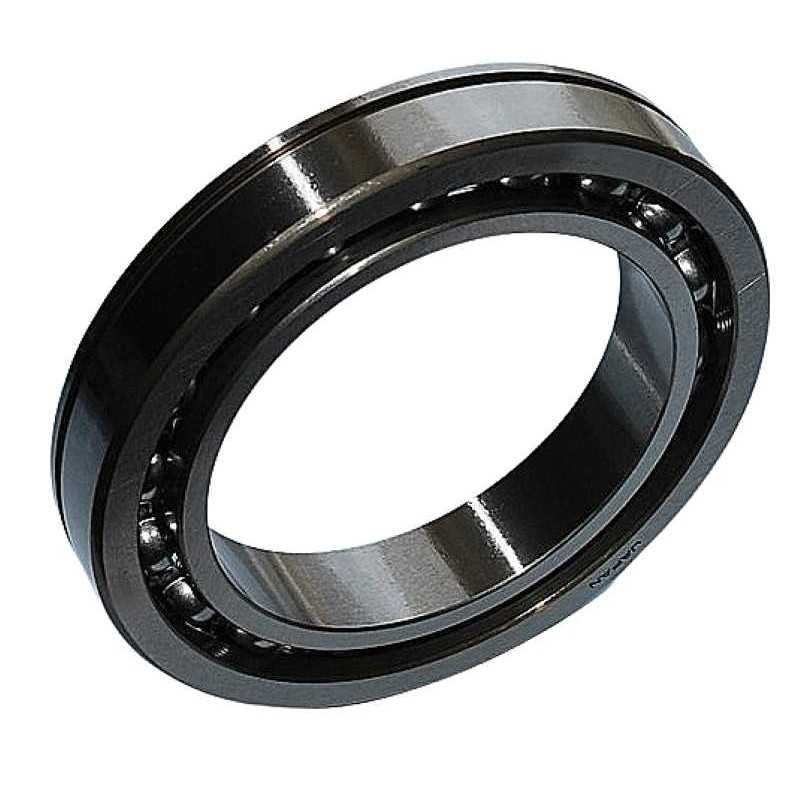

B75-55 NXC3 RICH Single Row Deep Groove Ball Bearing - 75 x 110 x 18 mm

OE References:

  • 90363-75001 TOYOTA

Technical Specifications:

  • Catalog Code: B75-55 NXC3 RICH
  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Bore Diameter (d): 75 mm
  • Outer Diameter (D): 110 mm
  • Width (B): 18 mm
  • Clearance: C3 (Greater than normal)
  • Cage: Steel
  • Groove on Outer Ring: Yes
  • Sealing: None (Open)
  • Weight: 0.518 kg
  • Country of Origin: China

Product Overview:

The B75-55 NXC3 RICH is a high-performance single row deep groove ball bearing specifically designed to withstand the operational stresses of automotive drivetrains. This unit features C3 internal clearance, which is essential for managing thermal expansion in applications where heat buildup is common, such as in heavy-duty transmissions. The presence of a groove on the outer ring allows for precise axial retention within the housing, ensuring the bearing remains stable under load. Built with a robust steel cage and an open design for oil-bath lubrication, it provides smooth rotation and durability for Toyota axle and gearbox systems.

Key Performance Advantages:

  • Thermal Capacity: C3 clearance optimized for high-temperature stability and reduced risk of seizing.
  • Mechanical Strength: Equipped with a pressed steel cage for high structural reliability under radial stress.
  • Secure Fitment: Outer ring groove enables simplified and accurate installation in specialized housings.
  • Precision Engineering: Developed as a high-quality alternative for Toyota 90363-75001 requirements.

Transparency Note: This bearing is manufactured under the RICH brand. The code B75-55 NXC3 and the OE references listed are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
75
Outer Diameter
110
Width
18
Weight
0,518
Ball Rows
Single Row
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
