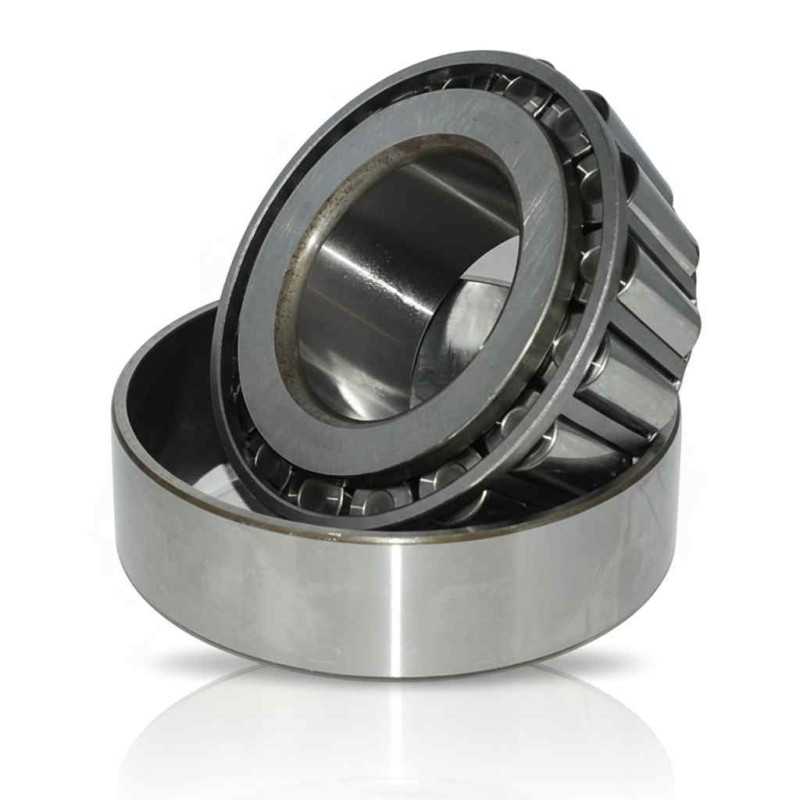

32010 XJ RICH Single Row Tapered Roller Bearing – 50 × 80 × 22.5 mm
OE References:
Technical Specifications:
- Type: Single row tapered roller bearing
- Brand: RICH
- Model Designation: 32010 XJ RICH
- Inner Diameter (d): 50 mm
- Outer Diameter (D): 80 mm
- Total Width (T): 22.5 mm
- Inner Ring Width (B): 20 mm
- Outer Ring Width (C): 18 mm
- Rounding Radius (R1): 2 mm
- Rounding Radius (R2): 2 mm
- Weight: 0.403 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Single row radial-axial tapered roller bearing.
- Internal Geometry: Optimized tapered rollers and raceways designed to manage heavy combined loads efficiently.
- Material Composition: Manufactured from high-carbon chromium steel for maximum fatigue resistance.
- Configuration: Open-type design for integrated lubrication systems.
- Dimensional Format: 50 × 80 × 22.5 mm configuration.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
