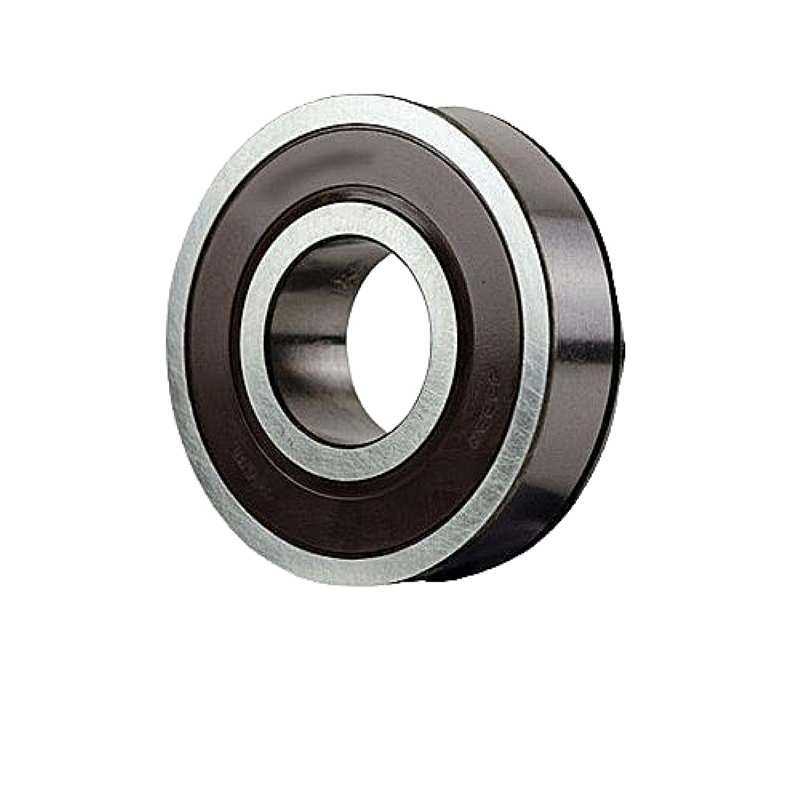

35BCS17-N C3 RICH Single Row Deep Groove Ball Bearing - 35 x 85 x 23 mm
OE References:
- 9036335023 TOYOTA
- 9036335024 TOYOTA
- 9036335030 TOYOTA
Technical Specifications:
- Catalog Code: 35BCS17-N C3 RICH
- Brand: RICH
- Type: Single row deep groove ball bearing
- Bore Diameter (d): 35 mm
- Outer Diameter (D): 85 mm
- Width (B): 23 mm
- Clearance: C3 (Greater than normal)
- Outer Ring Feature: Groove for snap ring (N)
- Sealing: Double-sided rubber contact seals
- Weight: 0.59 kg
- Country of Origin: China
Product Overview:
The 35BCS17-N C3 RICH is a heavy-duty single row deep groove ball bearing engineered for automotive transmissions and drivetrain components. Specifically designed to replace Toyota OE references 9036335023, 9036335024, and 9036335030, this bearing ensures a precise fit and long-term reliability for professional repairs. It is equipped with an integrated groove on the outer ring for snap ring mounting, providing secure axial positioning within the housing. The inclusion of double-sided contact rubber seals offers maximum protection against oil contaminants and road debris. Additionally, the C3 internal clearance is optimized for high-speed operation, allowing for thermal expansion without compromising the smoothness of the rotation.
Key Performance Advantages:
- Engineered for Toyota: Direct compatibility with major Toyota drivetrain OE part numbers for a seamless installation.
- Superior Sealing: Contact rubber seals maintain internal lubrication and prevent the ingress of harmful particles.
- Snap Ring Ready: The outer ring groove allows for rigid axial locking, preventing movement under high vibrations.
- High Thermal Margin: C3 clearance reduces the risk of internal binding during high-temperature automotive cycles.
Transparency Note: This bearing is manufactured under the RICH brand. The code 35BCS17-N C3 and the OE references listed are used solely for identification and do not imply affiliation with other manufacturers.
