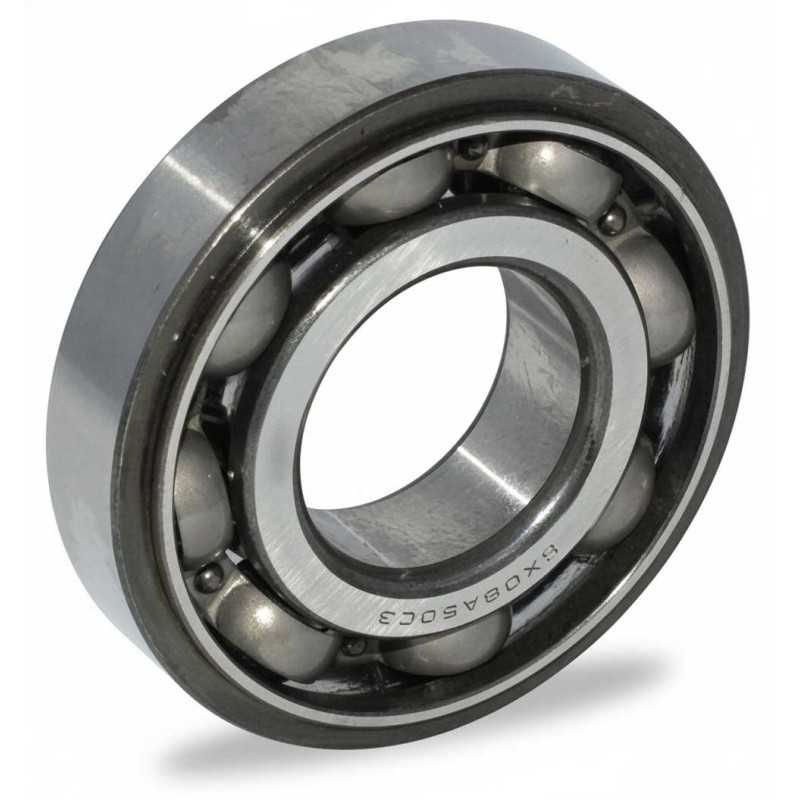

SX08A50 C3 RICH 40x90x23/18

SX08A50 C3 RICH – Single Row Deep Groove Ball Bearing – 40 x 90 x 23 mm

OE References:

• 92045-1187 KAWASAKI

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: SX08A50 C3
• Inner Diameter (d): 40 mm
• Outer Diameter (D): 90 mm
• Width (B): 23 mm
• Outer Ring Width (C): 18 mm
• Internal Clearance: C3 (Greater than normal)
• Cage Material: Steel
• Sealing: None (Open)
• Weight: 0.597 kg
• Country of Origin: China

Product Details:

• Components: Single row radial deep groove ball configuration engineered with C3 internal radial clearance, a steel cage, and an asymmetrical ring layout showing an extended inner ring width relative to the outer ring width.
• Dimensions: 40 mm inner diameter, 90 mm outer diameter, 23 mm total width, and 18 mm outer ring width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
