TMB203JR2/42 C3 RICH 17x42x12 TMB203JR242C3 RICH
zoom_out_map
TMB203JR2/42 C3 RICH 17x42x12 TMB203JR242C3 RICH

TMB203JR2/42 C3 RICH 17x42x12

Type: Deep Groove Ball Bearing
Model: RICH TMB203JR2/42 C3
Bore: 17 mm
Clearance: C3
Sealing: Open Type
Brand: RICH
RICH
TMB203JR242C3
€7.11
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

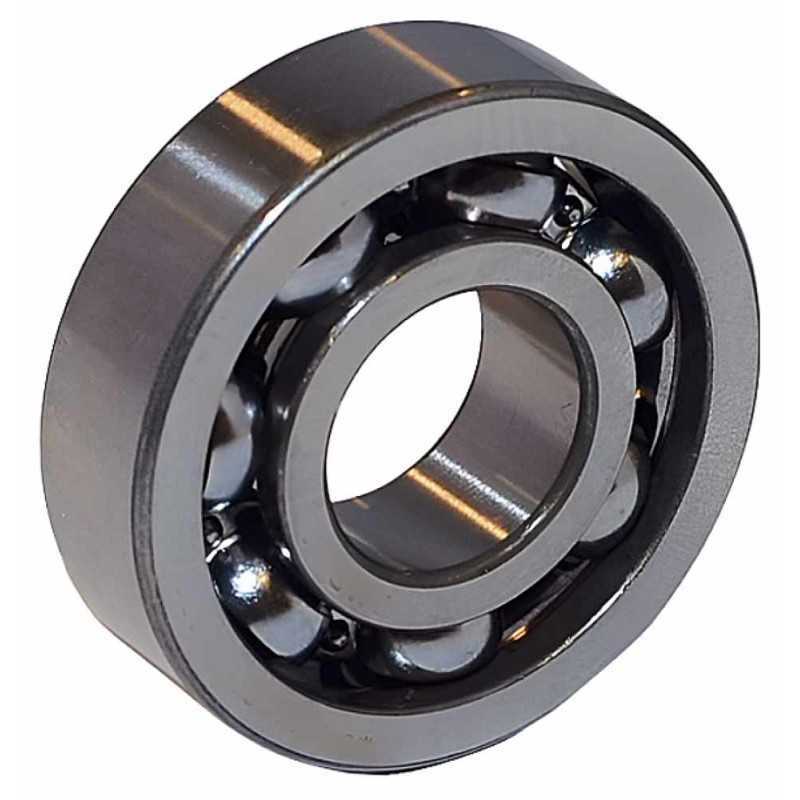

TMB203JR2/42 C3 RICH | Single Row Deep Groove Ball Bearing – 17 × 42 × 12 mm

OE References / Interchange:

  • 91004-GCC-771 HONDA
  • 91004-GCC-000 HONDA

Technical Specifications:

  • Catalog Code: TMB203JR2/42 C3
  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Dimensions: 17 × 42 × 12 mm
  • Cage: Steel
  • Clearance: C3
  • Sealing: Open type
  • Reinforced Execution: Yes
  • Weight: 0.083 kg
  • Country of Origin: China

Performance Characteristics:

  • Raceway Geometry: Deep groove
  • Internal Clearance: C3 specification
  • Cage Type: Steel
  • Configuration: Open
  • Execution: Reinforced

Description:

TMB203JR2/42 C3 RICH is a single row deep groove ball bearing with C3 internal clearance, steel cage and open configuration. Dimensional and structural characteristics correspond to the listed OE references.

Additional Technical Data:

  • Designation: TMB203JR2/42 C3
  • Bore Type: Cylindrical
  • Material: Bearing steel
  • OE References: 91004-GCC-771 HONDA / 91004-GCC-000 HONDA

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
17
Outer Diameter
42
Width
12
Weight
0,083
Ball Rows
Single Row
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
