B25-164AZNXC3 RICH 25x60x25

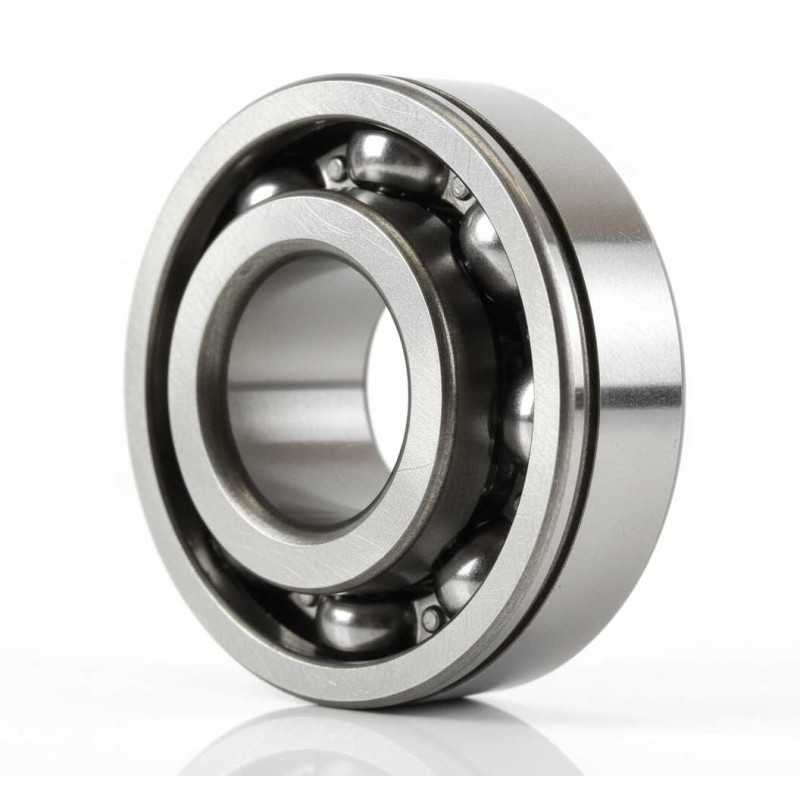

B25-164AZNXC3 RICH Single Row Deep Groove Ball Bearing – 25 × 60 × 25 mm

OE Reference: 90363-25034 (TOYOTA)

The B25-164AZNXC3 RICH is a single row deep groove ball bearing. Its dimensional and structural parameters correspond to the 25 × 60 × 25 mm format, incorporating an asymmetric ring configuration with an outer ring width of 17 mm, a snap ring groove on the outer ring, and a C3 radial internal clearance classification.

Technical Specifications:

• Brand: RICH
• Type: Single row deep groove ball bearing
• Model: B25-164AZNXC3 RICH
• Inner Diameter (d): 25 mm
• Outer Diameter (D): 60 mm
• Inner Ring Width (B): 25 mm
• Outer Ring Width (C): 17 mm
• Internal Clearance: C3
• Outer Ring Feature: Snap ring groove
• Sealing: One-sided non-contact metal shield (Z)
• Weight: 0.259 kg
• Country of Origin: China

Performance Characteristics:

• Load Profile: Radial load arrangement with defined axial capacity
• Thermal Classification: C3 clearance associated with thermal expansion behavior
• Structural Layout: Asymmetric ring width and snap ring groove configuration
• Material Type: High‑carbon chrome bearing steel
• Application Interface: Associated with the Toyota OE identification code listed above

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
