AB 44174 S01 RICH 28x64x18 AB44174.S01 RICH
zoom_out_map
AB 44174 S01 RICH 28x64x18 AB44174.S01 RICH

AB 44174 S01 RICH 28x64x18

Type: Single Row Angular Contact Ball Bearing
Model: AB 44174 S01 RICH
Dimensions: 28 x 64 x 18 mm
Brand: RICH
Origin: China
RICH
AB44174.S01
€15.74
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

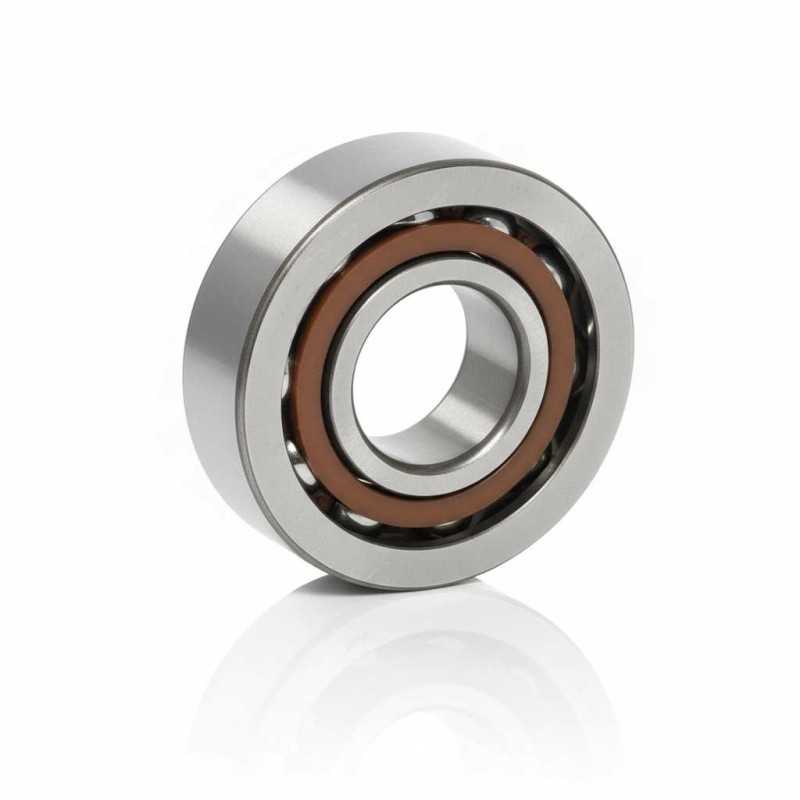

AB 44174 S01 RICH Single Row Angular Contact Ball Bearing – 28 × 64 × 18 mm

OE References:

  • HONDA 91002RM00030

Technical Specifications:

  • Type: Single row angular-contact ball bearing
  • Brand: RICH
  • Model Designation: AB 44174 S01 RICH
  • Inner Diameter (d): 28 mm
  • Outer Diameter (D): 64 mm
  • Width (B): 18 mm
  • Weight: 0.24 kg
  • Cage: Polyamide
  • Sealing: None (Open bearing)
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row radial-axial ball bearing.
  • Internal Geometry: Angular contact raceways for the distribution of radial and axial loads.
  • Material Composition: High-carbon chromium steel rings and rolling elements with polyamide cage.
  • Lubrication: Open configuration without integrated sealing elements.
  • Dimensional Format: 28 × 64 × 18 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
28
Outer Diameter
64
Width
18
Weight
0,24
Ball Rows
Single Row
Cage
Polyamide Cage
Category
Single Row Deep Groove Ball Bearing
