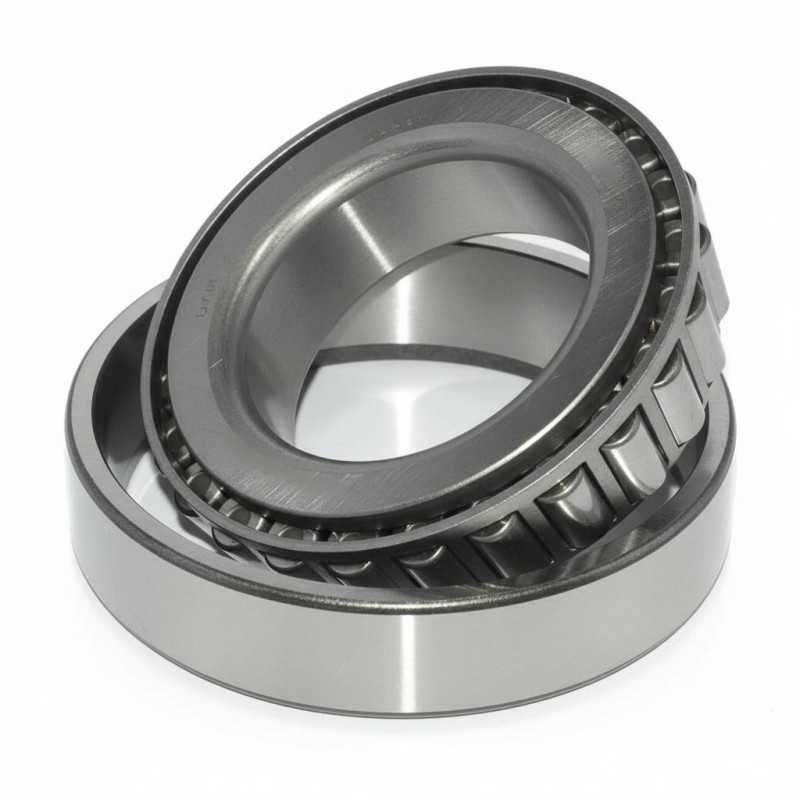

TR 0809A RICH Single Row Tapered Roller Bearing – 40 × 90 × 35.25 mm
OE References:
- NISSAN 38120-76500
- NISSAN 38120-7650A
- NISSAN 38120-76501
- TOYOTA 90366-40026
- TOYOTA 90366-40103
- ISUZU 9-00093-079
Technical Specifications:
- Type: Single row tapered roller bearing
- Brand: RICH
- Model Designation: TR 0809A RICH
- Inner Diameter (d): 40 mm
- Outer Diameter (D): 90 mm
- Total Width (T): 35.25 mm
- Inner Ring Width (B): 33 mm
- Outer Ring Width (C): 26 mm
- Weight: 1 kg
- Feature: CN - Normal contact angle
- Country of Origin: China
Performance Characteristics:
- Structural Layout: High-capacity single row radial-axial tapered roller bearing designed for heavy-duty vehicle applications.
- Internal Geometry: Featuring a normal contact angle (CN) optimized for balanced distribution of high radial and axial thrust loads.
- Material Composition: Manufactured from high-carbon chromium steel for enhanced fatigue life and structural stability under load.
- Application Precision: Specifically engineered for automotive differentials and transmission systems requiring robust axial guidance.
- Dimensional Format: 40 × 90 × 35.25 mm configuration.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
