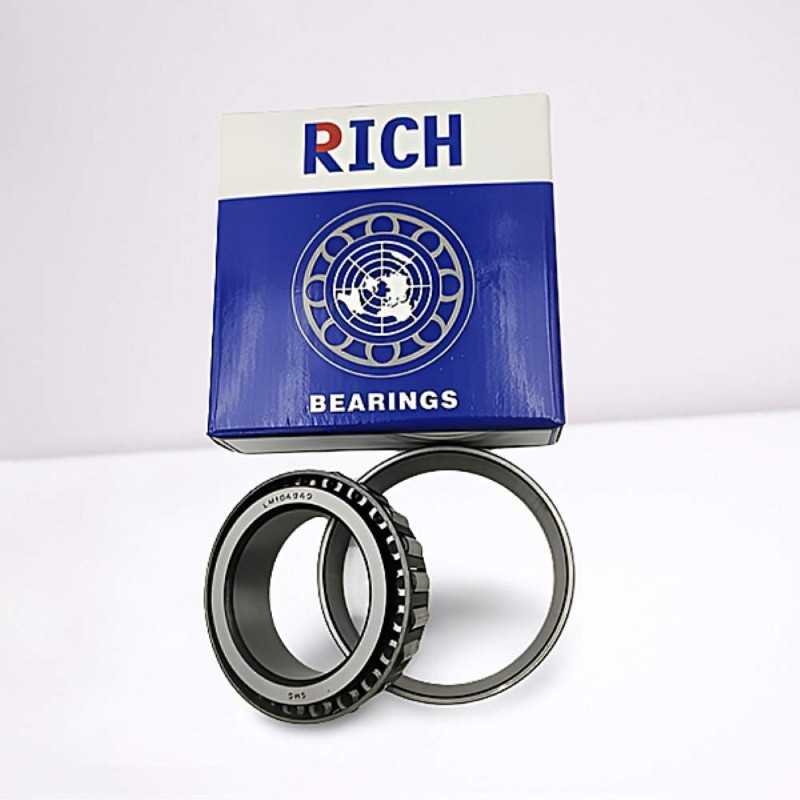

13685/13621 RICH Single Row Tapered Roller Bearing - 38.1 x 69.012 x 19.05 mm

The 13685/13621 RICH is a single row tapered roller bearing designed for reliable performance in applications requiring the accommodation of both radial and axial loads. This bearing has key dimensions of 38.1 mm inner diameter, 69.012 mm outer diameter, and a width of 19.05 mm. The outer ring width (C) is 15.083 mm, and the inner ring width is 19.05 mm, which is also the total bearing width (T). It has a rounding radius (R1) of 3.5 mm and weighs approximately 0.29 kg. This bearing is known to be used in G13600 IH CASE and JD8122 JOHN DEERE equipment. Please note that the country of origin is not specified in the provided data.

Key Specifications:

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model: 13685/13621 RICH
  • Inner Diameter (d): 38.1 mm
  • Outer Diameter (D): 69.012 mm
  • Width (B/T): 19.05 mm
  • Outer Ring Width (C): 15.083 mm
  • Inner Ring Width: 19.05 mm
  • Rounding Radius (R1): 3.5 mm
  • Weight: Approximately 0.29 kg
  • Known Applications: G13600 IH CASE, JD8122 JOHN DEERE

Key Features:

  • Single Row Tapered Design: Accommodates both radial and axial loads in one direction.
  • Durable Construction: Designed for reliable performance.
  • Specific Dimensions: Matches requirements for known applications.
  • Versatile Application: Suitable for various machinery including agricultural equipment.

Data sheet

Inner Diameter
38,1
Outer Diameter
69,01
Width
19,05
Weight
0,293
Roller Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Tapered Roller Bearing
