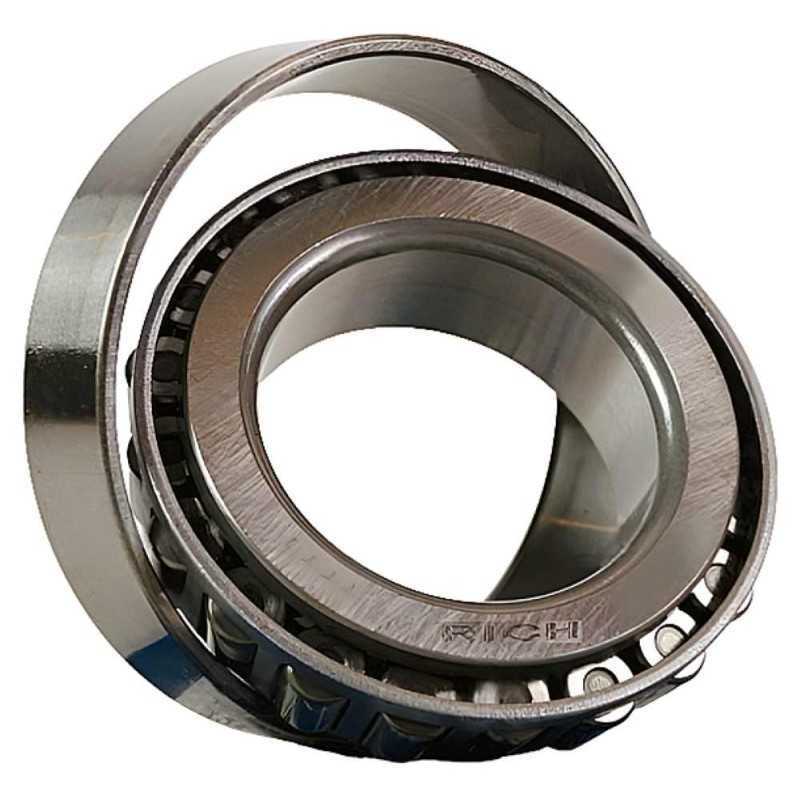

ST 3968-1 RICH Single Row Tapered Roller Bearing – 38.5 × 68 × 16.5 mm
OE References:
Technical Specifications:
- Type: Single row tapered roller bearing
- Brand: RICH
- Model Designation: ST 3968-1 RICH
- Inner Diameter (d): 38.5 mm
- Outer Diameter (D): 68 mm
- Total Width (T): 16.5 mm
- Inner Ring Width (B): 17.5 mm
- Outer Ring Width (C): 14.6 mm
- Weight: 0.28 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Precision single row tapered roller bearing engineered to accommodate combined radial and axial loads.
- Material Composition: Manufactured from high-carbon chromium steel for enhanced surface hardness and operational durability.
- Design Feature: Specifically configured with a 38.5 mm bore and 14.6 mm outer ring width for targeted automotive and industrial applications.
- Operational Logic: The tapered geometry provides high stiffness and precise rotational accuracy under variable load conditions.
- Dimensional Format: 38.5 × 68 × 16.5 mm configuration, optimized for integration into compatible housing units.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
