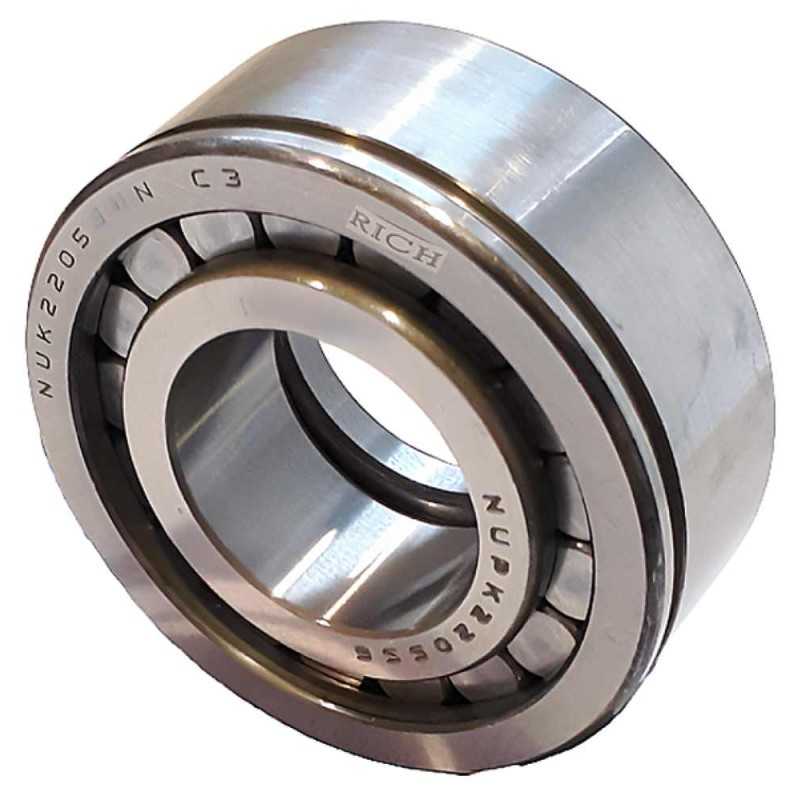

The RICH NUPK 2205 N C3 is a single row cylindrical roller bearing (25x52x20 mm) with a snap ring groove, no cage, and C3 clearance. Manufactured in China.
The RICH NUPK 2205 N C3 is a high-performance single row cylindrical roller bearing designed for applications requiring exceptional radial load capacity, precision, and versatile axial location. This bearing stands out with its integrated snap ring groove on the outer ring, simplifying mounting and axial retention. This bearing exemplifies RICH's commitment to delivering robust and versatile industrial components.
With precise dimensions of 25 mm inner diameter, 52 mm outer diameter, and 20 mm width, the NUPK 2205 N C3 RICH is optimized for heavy radial loads due to its extensive contact area between the rollers and raceways. The NUPK designation indicates that the bearing features two integral flanges on the outer ring, one on the inner ring, and a removable L-shaped flange on the opposite side of the inner ring, allowing for axial location in both directions. The "N" suffix signifies the presence of a snap ring groove on the outer ring, facilitating precise axial positioning within its housing without the need for additional machining. The absence of a traditional cage ("none") typically implies a full complement of rollers, which maximizes load-carrying capacity. The C3 clearance (greater than normal) allows for thermal expansion and misalignment, crucial in applications with significant temperature variations or mounting inaccuracies. Manufactured in China, this RICH cylindrical roller bearing provides dependable performance and offers a high-quality solution for various industrial machinery and equipment.
Data sheet
The RICH NUPK 2205 N C3 is a single row cylindrical roller bearing (25x52x20 mm) with a snap ring groove, no cage, and C3 clearance. Manufactured in China.
