RC-320308 (BC1B 320308A) RICH 45x100x31

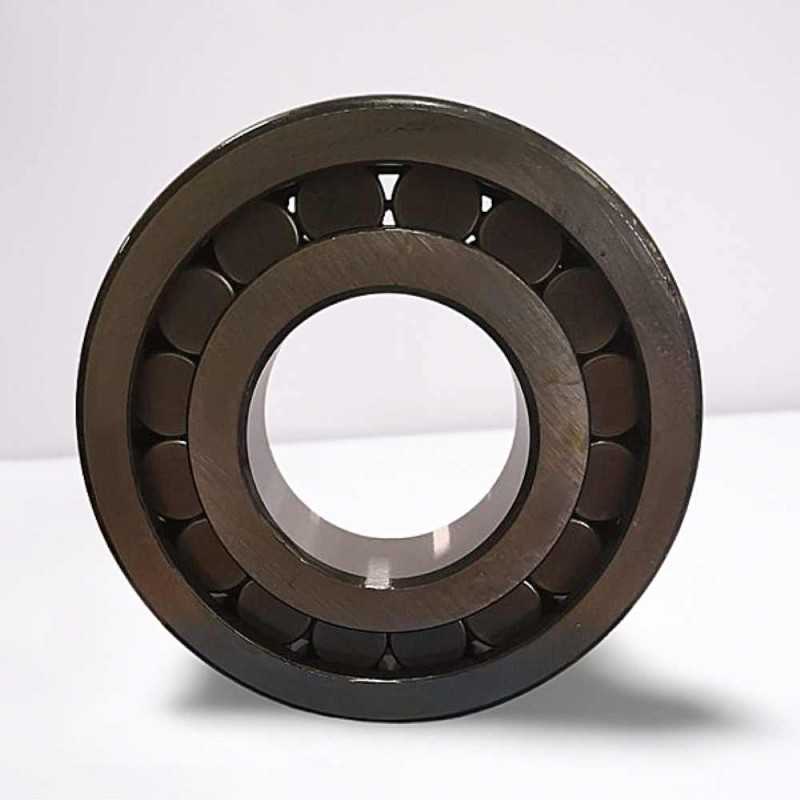

RICH RC-320308 – 45x100x31 mm – Single Row Cylindrical Roller Bearing

OE References and Interchanges:

• IVECO 1905316
• MERITOR 098509
• MERITOR 1228K1025
• MERITOR 1228S1267
• RENAULT TRUCKS 5001859173
• RENAULT TRUCKS 7420366533
• VOLVO 1523540
• VOLVO 20366533
• FAG 566949
• SKF BC1B 320308 A
• SNR NF12192S01
• TORRINGTON MUB 7309 UM

Technical Specifications:

• Type: Single Row Cylindrical Roller Bearing
• Brand: RICH
• Model Designation: RC-320308 RICH
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 100 mm
• Width (B): 31 mm
• Weight: 1.212 kg
• Cage: None (Full Complement)
• Country of Origin: China

The RICH RC-320308 is a high-capacity single row cylindrical roller bearing, engineered to provide exceptional radial load support and rigidity in demanding applications. This bearing showcases RICH's commitment to delivering durable and robust industrial solutions for heavy-duty machinery.

With precise dimensions of 45 mm inner diameter, 100 mm outer diameter, and 31 mm width, the RC-320308 RICH is ideally suited for applications where maximum radial load-carrying capability is required. The absence of a cage (full complement design) allows for a larger number of rollers to be incorporated, significantly increasing the load capacity compared to caged cylindrical roller bearings. This design also offers high rigidity and is particularly suitable for applications with heavy loads, shocks, or where precise radial clearance control is needed. Cylindrical roller bearings are known for accommodating high speeds and are frequently used in gearboxes, pumps, electric motors, and heavy industrial equipment. Manufactured in China, this RICH cylindrical roller bearing ensures consistent quality and dependable performance, providing a trustworthy solution for critical power transmission systems.

Key Performance Advantages:

• Maximum Radial Load Capacity: Full complement design allows for the highest possible radial load rating.
• High Rigidity: Provides stable and precise shaft guidance, even under heavy loads.
• Durable Construction: Built to withstand demanding industrial environments and shocks.
• Precision Engineering: Manufactured to exact specifications for dependable operation and seamless integration.
• RICH Quality: Produced in China, ensuring consistent quality and dependable performance.
