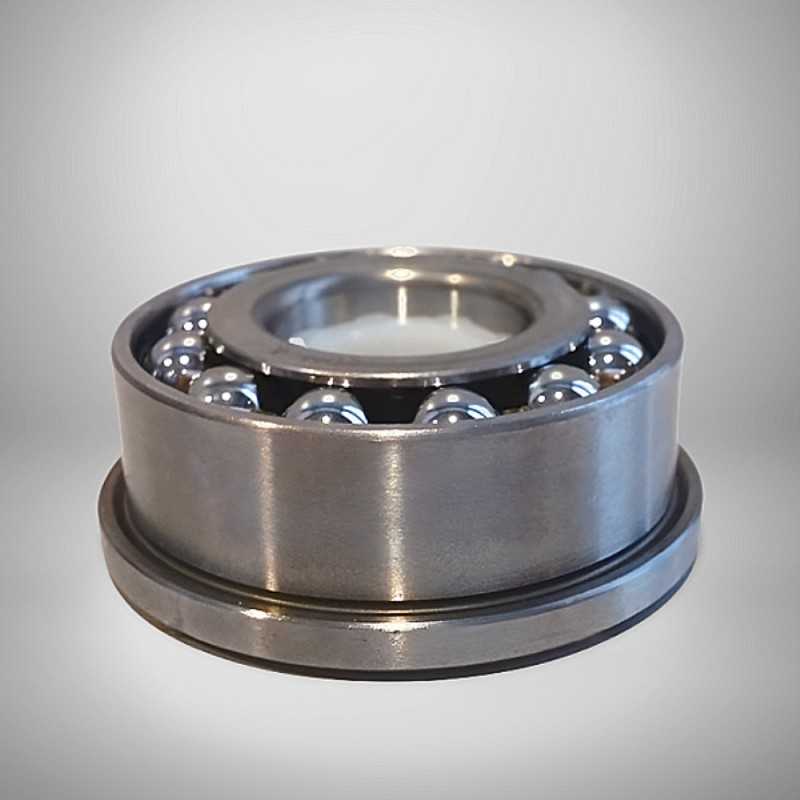

CBK 506 RICH 21,6x48x21 CBK506 RICH
zoom_out_map
CBK 506 RICH 21,6x48x21 CBK506 RICH

CBK 506 RICH 21,6x48x21

Type: Double Row Angular Contact Ball Bearing
Model: CBK 506 RICH
Dimensions: 21.6 x 48 x 21 mm
Brand: RICH
Origin: China
RICH
CBK506
€10.69
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

CBK 506 RICH Double Row Angular Contact Ball Bearing – 21.6 × 48 × 21 mm

Technical Specifications:

  • Type: Double row angular-contact ball bearing
  • Brand: RICH
  • Model Designation: CBK 506 RICH
  • Inner Diameter (d): 21.6 mm
  • Outer Diameter (D): 48 mm
  • Width (B): 21 mm
  • Outer Ring Width (C): 18 mm
  • Flange Diameter (D1): 53 mm
  • Flange Thickness (e): 4 mm
  • Weight: 0.167 kg
  • Cage: Polyamide
  • Sealing: None (Open bearing)
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Double row radial-axial ball bearing with flanged outer ring.
  • Internal Geometry: Angular contact raceways for the distribution of radial and axial loads.
  • Material Composition: High-carbon chromium steel rings and rolling elements with polyamide cage.
  • Lubrication: Open configuration without integrated sealing elements.
  • Dimensional Format: 21.6 × 48 × 21 mm configuration with integrated 53 mm flange.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
21,8
Outer Diameter
48/53
Width
20,6
Weight
0,2
Ball Rows
Double Row
Category
Double Row Angular-Contact Ball Bearing
