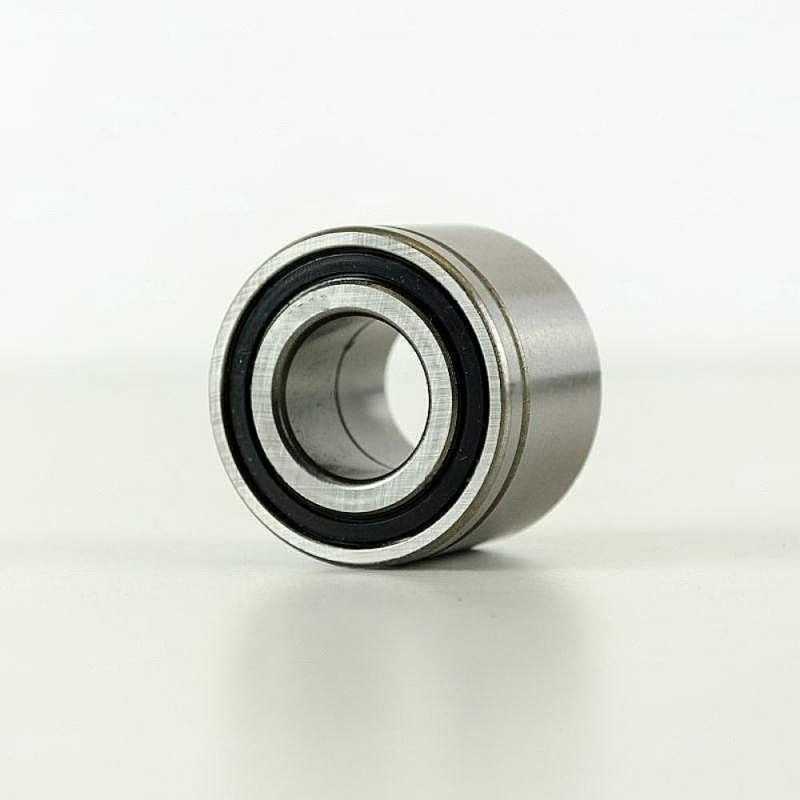

DAC20420030/29 RICH Double Row Angular-Contact Ball Bearing - 20 x 42 x 30 mm (Sealed, with Groove)
The DAC20420030/29 RICH is a high-quality double row angular-contact ball bearing designed to handle both radial and axial loads in both directions. This type of bearing is particularly well-suited for applications demanding high rigidity and accurate shaft guidance. It features double-sided rubber contact seals, providing excellent protection against 20.520000 contaminants like dust, dirt, and moisture, while effectively retaining internal lubrication. This robust sealing significantly extends the bearing's service life and reduces the need for maintenance, even in demanding operating environments. A notable feature is the groove on the outer ring, which can be used for specific mounting or retention purposes. Its dimensions are a 20 mm bore diameter, 42 mm outer diameter, and a width of 30 mm, with an outer ring width (C) of 29 mm. It has a weight of 0.187 kg. This product is manufactured in China by RICH.
Key Specifications:
- Type: Double Row Angular-Contact Ball Bearing
- Dimensions: 20 mm bore diameter x 42 mm outer diameter x 30 mm width
- Outer Ring Width (C): 29 mm
- Weight: 0.187 kg
- Sealing: Double-sided rubber, contact
- Groove on Outer Ring: Yes
- Country of Origin: China
- Brand: RICH8
- Known Oe Interchange : 565592 FAG
Key Advantages:
- Manages both radial and axial loads in both directions.
- Provides high rigidity and precise shaft guidance.
- Double-sided rubber seals offer excellent contamination protection.
- Groove on outer ring for specific mounting requirements.
- Contributes to extended operational life and reduced maintenance.
- Suitable for various industrial and automotive applications.
Data sheet
Inner Diameter
20
Outer Diameter
42
Width
30
Weight
0,187
Ball Rows
Double Row
Category
Double Row Angular-Contact Ball Bearing
