  • CCF-1 3/8-SB RICH 12,7x34,92x19,05 CCF13/8SB RICH

CCF-1 3/8-SB RICH 12,7x34,92x19,05

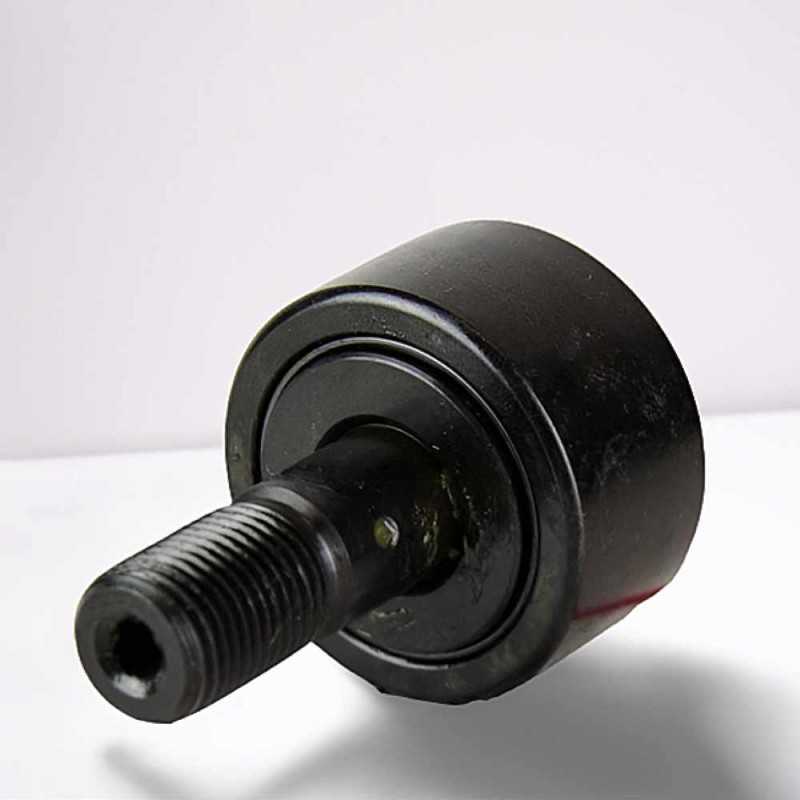

The CCF-1 3/8-SB RICH is a cam follower with a concentric stud, rounded outer ring, 12.7 x 34.92 x 19.05 mm dimensions, and double-sided rubber seals.

RICH
CCF13/8SB
€11.56
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

CCF-1 3/8-SB RICH Cam Follower with Concentric Stud and Rounded Outer Ring - 12.7 x 34.92 x 19.05 mm

Technical Specifications:

  • Type: Cam Follower, Concentric Stud
  • Brand: RICH
  • Model Designation: CCF-1 3/8-SB
  • Dimensions: 12.7 x 34.92 x 19.05 mm
  • Thread: M12.7x1.27 (UNF)
  • Bearing Length (B1): 51.59 mm
  • Weight: 0.17 kg
  • Cage: No Cage (Full Complement of Rollers)
  • Outer Ring: Rounded (Crowned)
  • Sealing: Double-sided rubber, contact
  • Country of Origin: China

The CCF-1 3/8-SB RICH is a heavy-duty cam follower with a concentric stud, featuring a full complement of rollers for maximum load-carrying capacity. Its rounded (crowned) outer ring helps to minimize edge stresses and accommodates some misalignment, making it ideal for motion on inclined surfaces. The robust design is further enhanced by double-sided rubber contact seals that provide excellent protection against contamination, ensuring a long and reliable service life in demanding environments.

Key Performance Advantages:

  • High Load Capacity: Full complement of rollers provides superior load-carrying capability.
  • Reduced Stress: Rounded outer ring minimizes stress on mating surfaces and accommodates misalignment.
  • Effective Sealing: Contact seals prevent contamination, improving bearing longevity.
  • Rich Quality: A reliable component engineered for long-lasting performance.

Data sheet

Inner Diameter
12,7
Outer Diameter
34,92
Width
19,05
Weight
0,17
