DG204714 2RS C3 RICH 20x47x14 DG2047142RKBS12C3 RICH
zoom_out_map
DG204714 2RS C3 RICH 20x47x14 DG2047142RKBS12C3 RICH

DG204714 2RS C3 RICH 20x47x14

Type: Single Row Deep Groove Ball Bearing
Model: DG204714 2RS C3 RICH
Dimensions: 20 x 47 x 14 mm
Brand: RICH
Origin: China
RICH
DG2047142RKBS12C3
€6.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

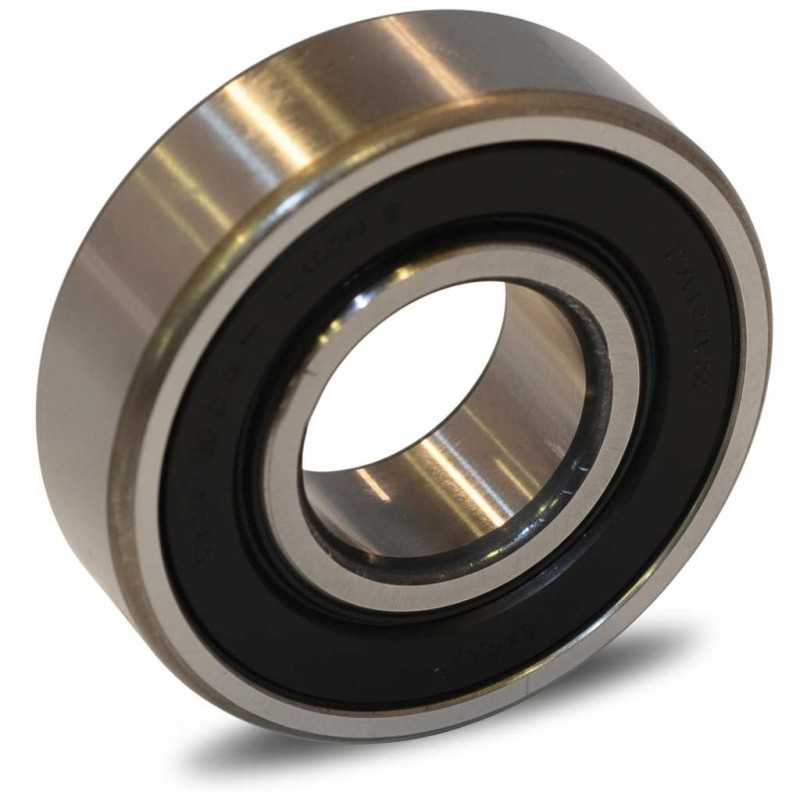

DG204714 2RS C3 RICH – Single Row Deep Groove Ball Bearing – 20 x 47 x 14 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: DG204714 2RS C3
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 47 mm
  • Width (B): 14 mm
  • Internal Clearance: C3 (Greater than normal)
  • Sealing: Double-sided rubber contact seals (2RS)
  • Weight: 0.11 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision-engineered single-row deep groove ball bearing designed for balanced radial load support and high rotational reliability.
  • Thermal Stability: Manufactured with C3 internal clearance to accommodate thermal expansion during high-speed operation or elevated temperature environments.
  • Protection Mechanism: Equipped with high-performance double-sided contact rubber seals (2RS) to ensure maximum exclusion of environmental contaminants and effective grease retention.
  • Mechanical Interface: 20 x 47 x 14 mm dimensional format produced to rigorous industrial tolerances for stable fitment and reduced vibration in mechanical assemblies.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
14
Weight
0,11
Ball Rows
Single Row
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
