07100S/07210X RICH 25,4x50,8x15,011 07100S/07210X RICH
search
  • 07100S/07210X RICH 25,4x50,8x15,011 07100S/07210X RICH

07100S/07210X RICH 25,4x50,8x15,011

RICH
07100S/07210X
€7.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

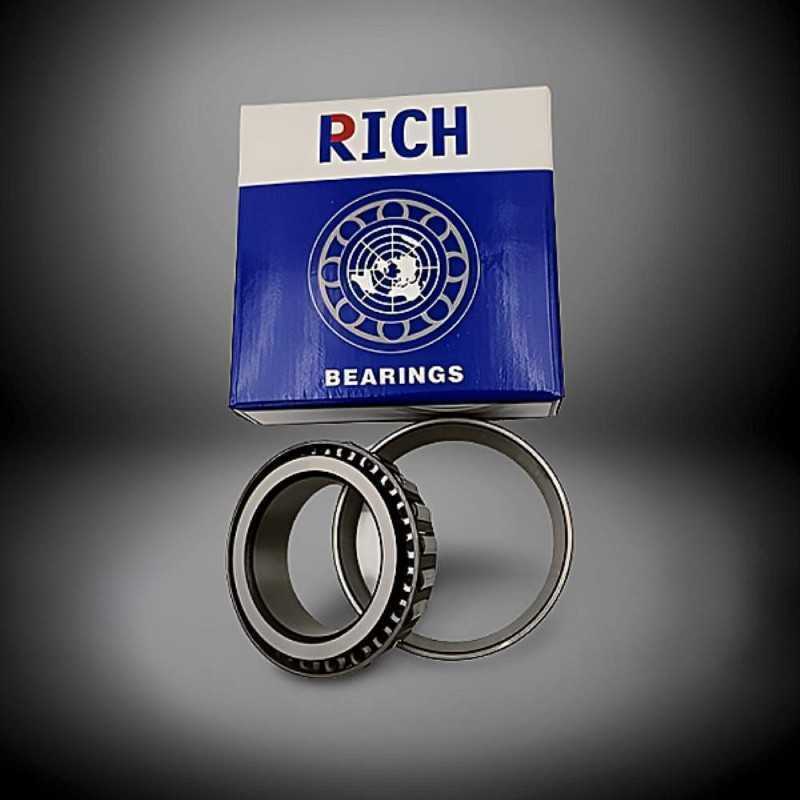

07100S/210X RICH Single Row Tapered Roller Bearing - 25.4 x 50.8 x 15.011 mm

The 07100S/210X RICH is a single row tapered roller bearing designed to accommodate combined radial and axial loads. This bearing has key dimensions of 25.4 mm inner diameter, 50.8 mm outer diameter, and a width (T) of 15.011 mm. The outer ring width (C) is 12.7 mm and the inner ring width is 14.26 mm. It features a rounding radius (R1) of 1.5 mm. It weighs 0.135 kg and is made in China.

Key Specifications:

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model:** 07100S/210X RICH
  • Inner Diameter (d):** 25.4 mm
  • Outer Diameter (D):** 50.8 mm
  • Width (T):** 15.011 mm
  • Outer Ring Width (C):** 12.7 mm
  • Inner Ring Width:** 14.26 mm
  • Rounding Radius (R1):** 1.5 mm
  • Weight:** 0.135 kg
  • Country of Origin:** China

Key Features:

  • Tapered Roller Design:** Optimized for combined radial and axial loads.
  • Separable Components:** The inner ring assembly (cone) and outer ring (cup) can be mounted separately.
  • Adjustable Clearance:** The axial clearance can be adjusted during mounting.
  • Robust Construction:** Capable of withstanding significant forces.
  • Versatile Application:** Used in various applications such as automotive axles, gearboxes, and industrial machinery.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
25,4
Outer Diameter
50,8
Width
15,011
Roller Rows
Single Row
Category
Single Row Tapered Roller Bearing
