  • QHH15CA-Z0-H RICH 15x34x61,4 QHH15CA-Z0-H RICH

QHH15CA-Z0-H RICH 15x34x61,4

The QHH15CA-Z0-H RICH linear recirculating ball bearing offers high accuracy, zero preload, and a standard SS seal for stable, precise linear motion.

RICH
QHH15CA-Z0-H
€15.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

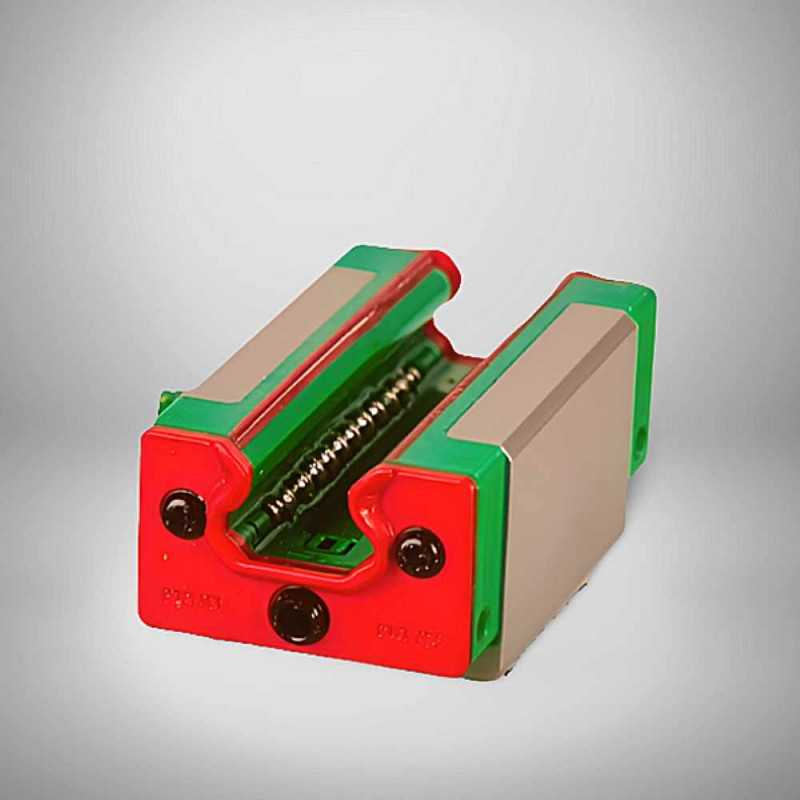

QHH15CA-Z0-H RICH Linear Recirculating Ball Bearing - 15 x 34 x 61.4 mm

Technical Specifications:

  • Bearing Type: Linear Recirculating Ball Bearing
  • Model Designation: QHH15CA-Z0-H
  • Brand: RICH
  • Dimensions: 15 x 34 x 61.4 mm
  • Weight: 0.2 kg
  • Cage: Yes
  • F2: 28 mm
  • J: 26 mm
  • K: 26 mm
  • L: 34 mm
  • L2: 26 mm
  • Precision: High accuracy
  • Preload: Zero preload
  • Rail Size: 15 mm
  • Sealing: SS - Standard seal
  • Country of Origin: China

The QHH15CA-Z0-H RICH is a high-quality linear recirculating ball bearing designed to provide exceptionally smooth and precise linear motion. This bearing features high accuracy and a zero preload, which ensures a rigid and stable bearing arrangement with minimal play. Its design with a standard SS seal provides protection against contaminants, extending its service life. With a 15 mm rail size and dimensions of 15 x 34 x 61.4 mm, this RICH bearing is built for stability in demanding applications. Made in China, it offers a reliable and durable solution for robotics, CNC machinery, and other automation systems.

Key Performance Advantages:

  • High Accuracy: Ensures smooth and precise linear motion with minimal deviation.
  • Zero Preload: Guarantees no clearance for enhanced rigidity and precision.
  • Effective Sealing: The standard seal protects the internal components from dust and debris.
  • RICH Quality: A dependable and robust component for reliable operation.

Data sheet

Inner Diameter
15
Outer Diameter
34
Width
61,4
