MGN15C-Z0-HM RICH 15x32x42,1 MGN15C-Z0-HM RICH
search
  • MGN15C-Z0-HM RICH 15x32x42,1 MGN15C-Z0-HM RICH

MGN15C-Z0-HM RICH 15x32x42,1

The MGN15C-Z0-HM RICH linear recirculating ball bearing is a stainless steel component with zero preload and high accuracy for smooth, precise motion.

RICH
MGN15C-Z0-HM
€16.92
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

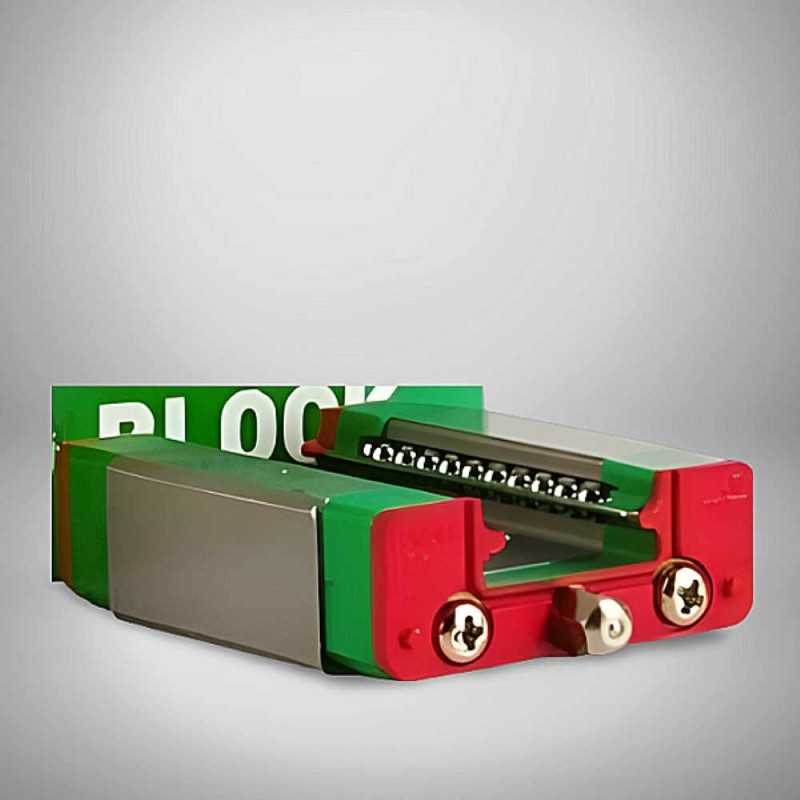

MGN15C-Z0-HM RICH Linear Recirculating Ball Bearing - 15 x 32 x 42.1 mm

Technical Specifications:

  • Bearing Type: Linear Recirculating Ball Bearing, Stainless Steel
  • Model Designation: MGN15C-Z0-HM
  • Brand: RICH
  • Dimensions: 15 x 32 x 42.1 mm
  • Inner Diameter (d): 15 mm
  • Outer Diameter (D): 32 mm
  • Length (L): 42.1 mm
  • Rail Size: 15 mm
  • F2: 16 mm
  • J: 25 mm
  • K: 20 mm
  • L2: 32 mm
  • Cage: None
  • Precision: High accuracy
  • Preload: Zero
  • Weight: 0.076 kg
  • Country of Origin: China

The MGN15C-Z0-HM RICH is a high-quality linear recirculating ball bearing crafted from stainless steel, designed for precise and corrosion-resistant linear motion. This bearing features high accuracy and zero preload, which ensures smooth, consistent movement without any play. Its robust stainless steel construction makes it an excellent choice for environments exposed to moisture, as well as for medical, food, and pharmaceutical applications. With a 15 mm rail size and a length of 42.1 mm, this RICH bearing provides a reliable and durable solution. Made in China, it delivers dependable and repeatable motion for demanding applications.

Key Performance Advantages:

  • Corrosion Resistance: The stainless steel material provides superior durability in harsh or humid environments.
  • High Accuracy: Ensures exceptionally smooth and precise linear motion with minimal deviation.
  • Zero Preload: Eliminates clearance, enhancing rigidity and precision.
  • RICH Quality: A dependable and robust component for reliable operation.

Data sheet

Inner Diameter
15
Outer Diameter
32
Width
42,1
