51316M RICH 80x140x44

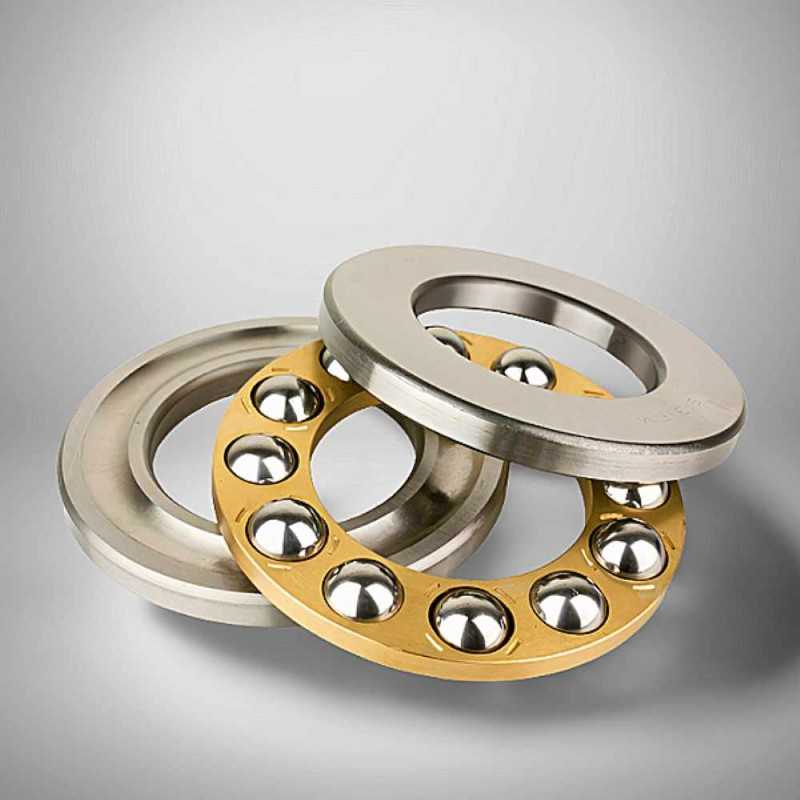

The 51316M RICH is an axial deep groove ball bearing (80 x 140 x 44 mm) with a brass cage, specifically designed to handle single-direction axial loads.
51316M RICH Axial Deep Groove Ball Bearing - 80 x 140 x 44 mm
Technical Specifications:
- Brand: RICH
- Type: Axial Deep Groove Ball Bearing
- Dimensions: 80 x 140 x 44 mm
- Weight: 2.859 kg
- Cage: Brass (M)
- Country of Origin: China
The 51316M RICH is a high-quality axial deep groove ball bearing, specifically engineered to handle pure axial loads in a single direction. Its design features a shaft washer, a housing washer, and a ball and cage assembly. The robust brass cage provides superior durability and performance in demanding conditions, keeping the balls separated and correctly spaced for smooth and efficient operation. This type of bearing is not designed to accommodate any radial load. With its compact design and high thrust capacity, this RICH bearing is a reliable component for applications where a strong axial force needs to be managed, such as in various industrial equipment, machine tools, and mechanical jacks.
Key Performance Advantages:
- High Axial Load Capacity: Specifically designed to manage heavy thrust loads in one direction.
- Separable Design: Components can be mounted individually for easier installation and maintenance.
- Brass Cage: Provides enhanced durability and stability, particularly in high-temperature or corrosive environments.
- Compact and Efficient: Offers high performance in a space-saving configuration.
- RICH Quality: A durable and dependable solution for motion control.
Data sheet
Inner Diameter
80
Outer Diameter
140
Width
44
Weight
2,85
Cage
Brass
Category
Axial deep groove ball bearing
