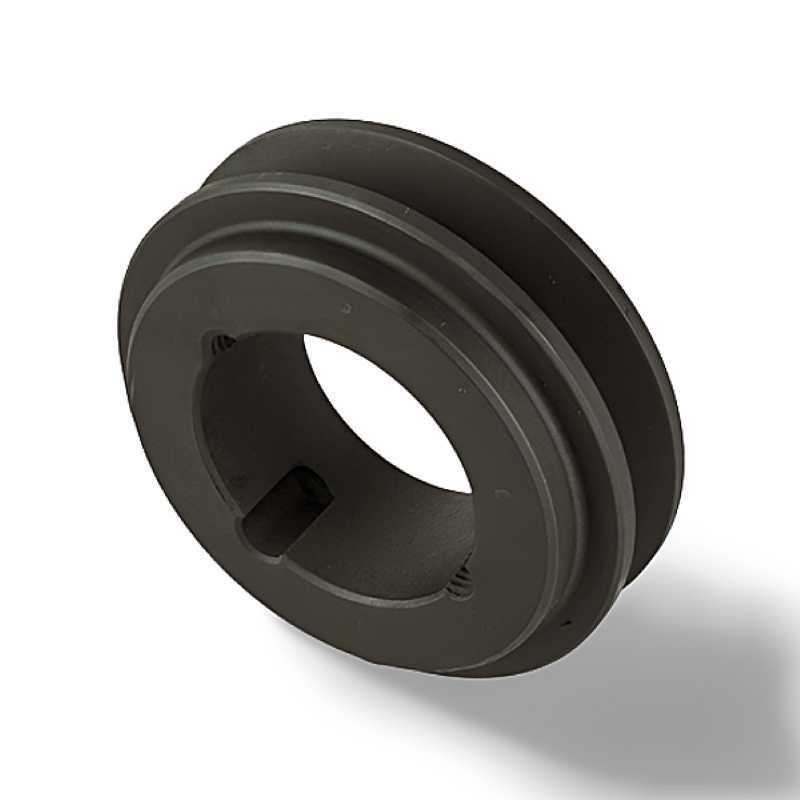

125SPZ1 RICH V-Belt Pulley 125x16 PBT125SPZ1 RICH
zoom_out_map
125SPZ1 RICH V-Belt Pulley 125x16 PBT125SPZ1 RICH

125SPZ1 RICH V-Belt Pulley 125x16

Type: V-Belt Pulley
Model: 125SPZ1 RICH
Profile: SPZ (1 Groove)
Diameter: 125 mm
Brand: RICH
Origin: China
RICH
PBT125SPZ1
€6.91
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

125SPZ1 RICH | V-Belt Pulley SPZ – 125 mm Pitch Diameter

OE Reference:

  • TB-SPZ125x1

Technical Specifications:

  • Catalog Code: 125SPZ1 RICH
  • Brand: RICH
  • Type: V-belt pulley
  • Profile: SPZ
  • Pitch Diameter (dw): 125 mm
  • Number of Grooves: 1
  • Material: Grey cast iron
  • Mounting Type: Taper bushing mounting (Used with Taper Lock 1610)
  • Total Width (W): 16 mm
  • Hub Width (L): 25 mm
  • Weight: 1.25 kg
  • Country of Origin: China

Key Performance Advantages:

  • Robust Construction: Manufactured from premium grey cast iron, providing high wear resistance and excellent vibration damping for stable power transmission.
  • Taper Lock Compatibility: Designed for use with a 1610 Taper Lock bushing, allowing for quick assembly and a perfect concentric fit that prevents shaft damage.
  • Optimized SPZ Profile: Precision-machined groove dimensions ensure maximum contact area with SPZ belts, reducing slippage and increasing drive efficiency.
  • Balanced Design: The RICH pulley is engineered to minimize radial and axial runout, protecting motor bearings and extending the life of the drive belts.
  • Versatile Industrial Use: Suitable for a wide range of motor-driven applications, including pumps, fans, and conveyor systems requiring reliable speed ratios.

Transparency Note: This component is manufactured under the RICH brand. The code 125SPZ1 is used for identification and does not imply affiliation with other manufacturers.

Data sheet

Outer Diameter
125
Width
16
