NFR 15 RICH 15x47x30
The NFR 15 RICH is a ball bearing freewheel clutch (15x47x30 mm) for one-way rotation, ideal for indexing, backstopping, and overrunning applications.

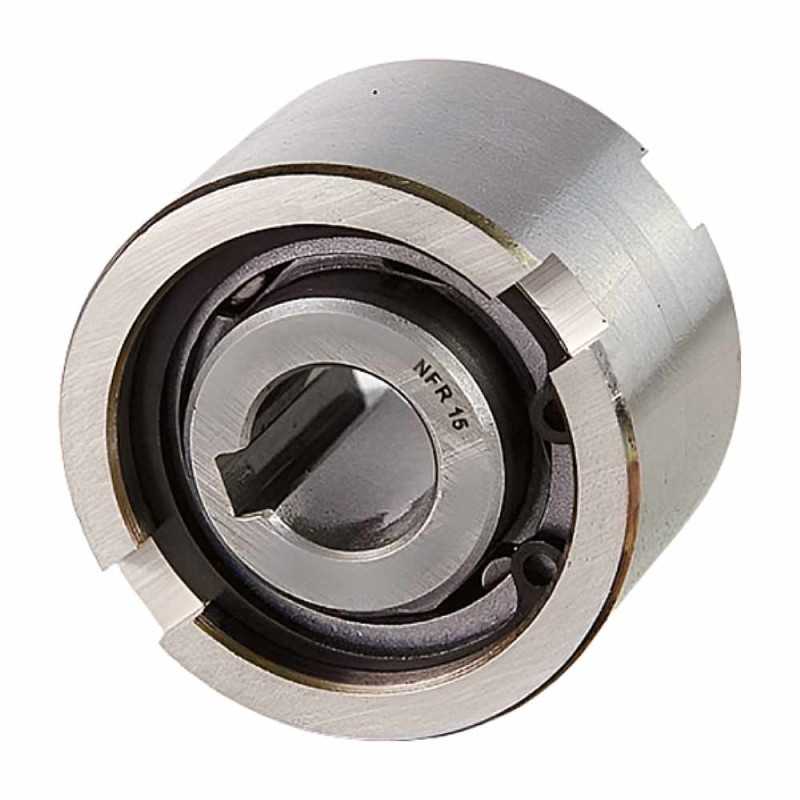

NFR 15 RICH Ball Bearing Freewheel Clutch - 15 x 47 x 30 mm
Technical Specifications:
- Brand: RICH
- Type: Ball Bearing Freewheel Clutch
- Dimensions: 15 x 47 x 30 mm
- Inner Diameter: 15 mm
- Outer Diameter: 47 mm
- Width: 30 mm
- Weight: 0.285 kg
- Country of Origin: China
The NFR 15 RICH is a reliable ball bearing freewheel clutch that allows rotation in one direction while preventing it in the opposite direction. This unit combines a freewheel clutch with a ball bearing in a compact design. It is used for indexing, overrunning, and backstopping applications, making it a versatile component in various mechanical systems. The freewheel clutch provides a positive and precise engagement, while the integrated ball bearing supports radial and axial loads.
Key Performance Advantages:
- Uni-directional Functionality: Permits rotation in one direction and locks in the other, ideal for backstopping and overrunning applications.
- Integrated Design: Combines a freewheel clutch and a ball bearing into a single, compact unit.
- Versatile Application: Suitable for indexing, overrunning, and backstopping in a variety of machinery.
Data sheet
Inner Diameter
15
Outer Diameter
47
Width
30
Weight
0,285
Category
Ball Bearing Freewheel Clutch
