NTA 3446 RICH 53,98x73,02x1,984 NTA-3446 RICH
zoom_out_map
NTA 3446 RICH 53,98x73,02x1,984 NTA-3446 RICH

NTA 3446 RICH 53,98x73,02x1,984

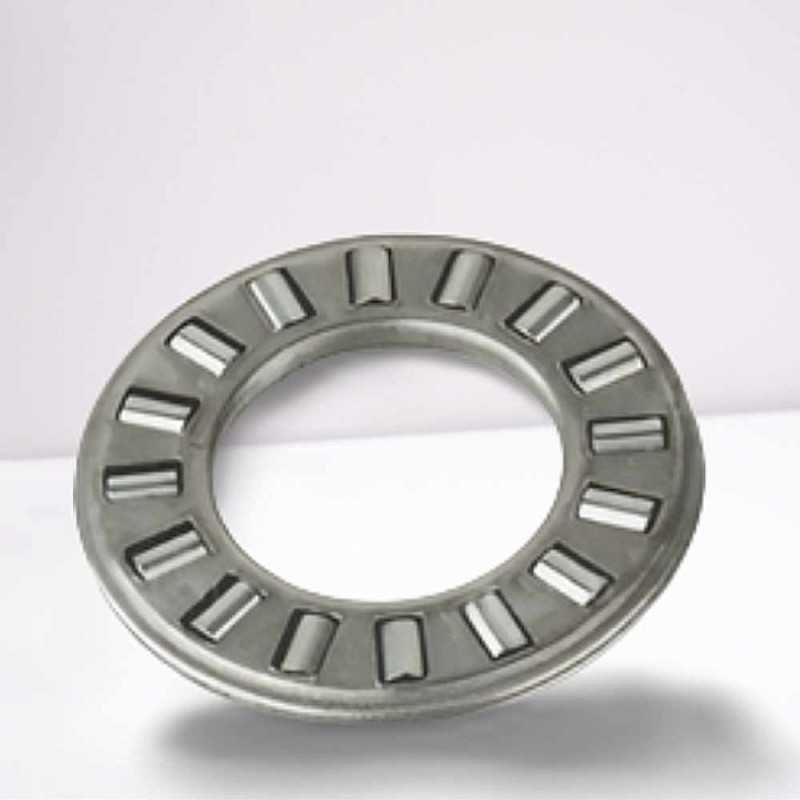

The NTA 3446 RICH is an Axial Needle Roller and Cage Assembly (53.98x73.02x1.984 mm) with a steel cage for high thrust loads in confined spaces.

RICH
NTA-3446
€0.73
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

NTA 3446 RICH Axial Needle Roller and Cage Assembly - 53.98 x 73.02 x 1.984 mm

Technical Specifications:

  • Brand: RICH
  • Type: Axial Needle Roller and Cage Assembly (Thrust)
  • Model: NTA 3446
  • Dimensions: 53.98 x 73.02 x 1.984 mm
  • Inner Diameter (d): 53.98 mm
  • Outer Diameter (D): 73.02 mm
  • Height (B): 1.984 mm
  • Cage Material: Steel
  • Weight: 0.016 kg
  • Country of Origin: China

The NTA 3446 RICH is a high-precision Axial Needle Roller and Cage Assembly specifically engineered for thrust applications where high load capacity and minimal axial space are critical. Manufactured by RICH, this assembly features metric dimensions of 53.98 x 73.02 x 1.984 mm.

The component consists of a robust steel cage that guides and retains a large number of hardened needle rollers. This design provides the highest possible load-carrying capability for a given axial cross-section. The very small axial height of the assembly makes it ideal for integrating into gearboxes, automotive transmissions, and compact industrial machinery. The NTA 3446 RICH must be used with hardened and ground raceways, typically provided by companion thrust washers (AS series) or suitably hardened adjacent machine components.

Key Performance Advantages:

  • High Axial Load Capacity: Large complement of needle rollers provides superior thrust load support.
  • Minimal Axial Space: Extremely small cross-section for space-constrained designs.
  • Steel Cage: Ensures roller retention and smooth, reliable operation under load.
  • Easy Installation: Simple, separable design facilitates mounting and disassembly.

Data sheet

Inner Diameter
53,98
Outer Diameter
73,02
Width
1,984
Weight
0,016
Category
Axial Needle Roller and Cage Assembly
